Same model may have multiple batches, images only for reference.

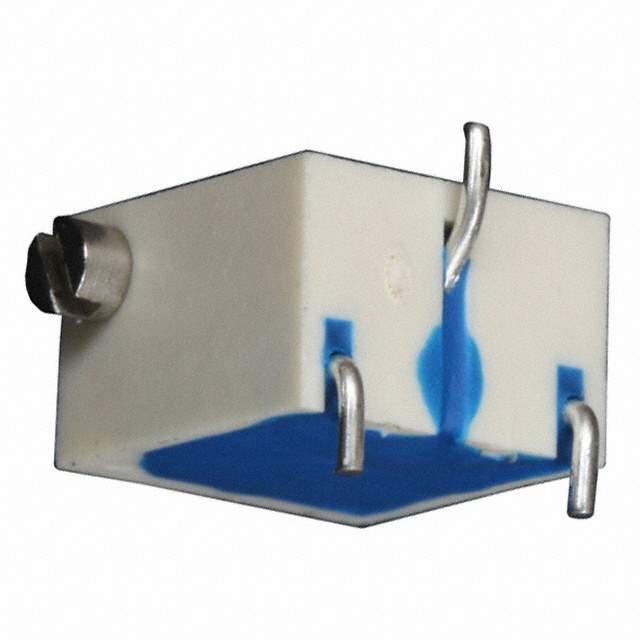

3269X-1-501GLF Real Image
Same model may have multiple batches, images only for reference.

3269X-1-501GLF

Part No 3269X-1-501GLF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.25W SMD
Datasheet
3269X-1-501GLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3269 - Sealed
Packaging Reel package
Resistance (Ohms) 500
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style Gull Wing
Dimension Rectangular - 0.250" x 0.170" Face x 0.293" H (6.35mm x 4.32mm x 7.44mm)
Win Source Part Number 763210-3269X-1-501GLF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 3269
Introduction Date November 13, 2001
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 3269X-1-501GLF CAD Model

Description

The Bourns Inc. 763210-3269X-1-501GLF is a trimpot device manufactured by Bourns Inc..

  • Dimension: Rectangular - 0.250" x 0.170" Face x 0.293" H (6.35mm x 4.32mm x 7.44mm)
  • Mounting Type: SMD
  • Termination Style: Gull-Wing
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Resistance: 500 ohms
  • Number of Turns: 12
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Category: Potentiometers, Variable Resistors
  • Popularity: High
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • Country of Origin: Costa Rica
  • Estimated EOL Date: 2025
