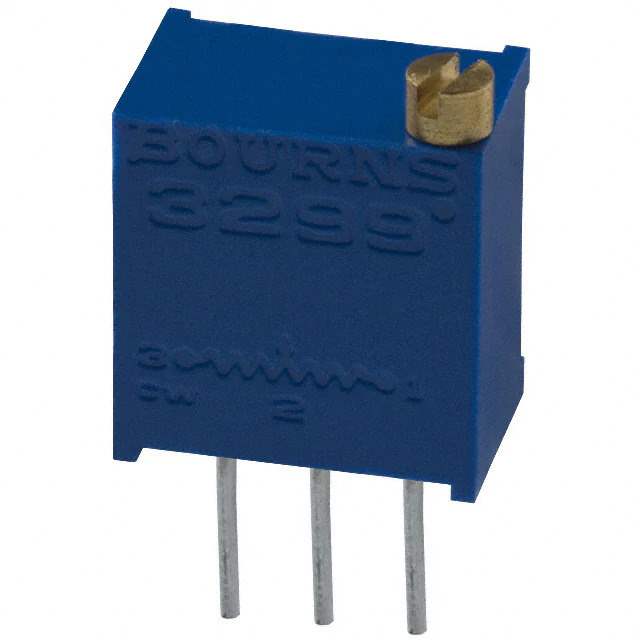

3299W-1-105LF Real Image
Same model may have multiple batches, images only for reference.

3299W-1-105LF

Part No 3299W-1-105LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.5W PC PIN TOP / 1 MOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
Datasheet
3299W-1-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3299 - Sealed
Package Tube
Product Status Active
Resistance 1 mOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.375" x 0.240" Face (9.53mm x 6.10mm)
Base Product Number 3299W
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855680-3299W-1-105LF
Ultra Librarian 3D Model Ultra Librarian 3299W-1-105LF CAD Model

Description

The 855680-3299W-1-105LF is a potentiometer manufactured by Bourns Inc.

  • Series: Trimpot® 3299 - Sealed
  • Resistance: 1 mOhms
  • Tolerance: ±10%
  • Mounting Type: Through Hole
  • Power (Watts): 0.5W or 1/2W
  • Package: Tube
  • Size / Dimension: 0.375" x 0.240" (9.53mm x 6.10mm)
  • Number of Turns: 25
  • Resistive Material: Cermet
  • Termination Style: PC pins
  • Adjustment Type: Top
  • Temperature Coefficient: ±100ppm/°C
  • Application: Various applications in the electronics industry
  • Product Status: Active
  • California Prop 65: Compliant
