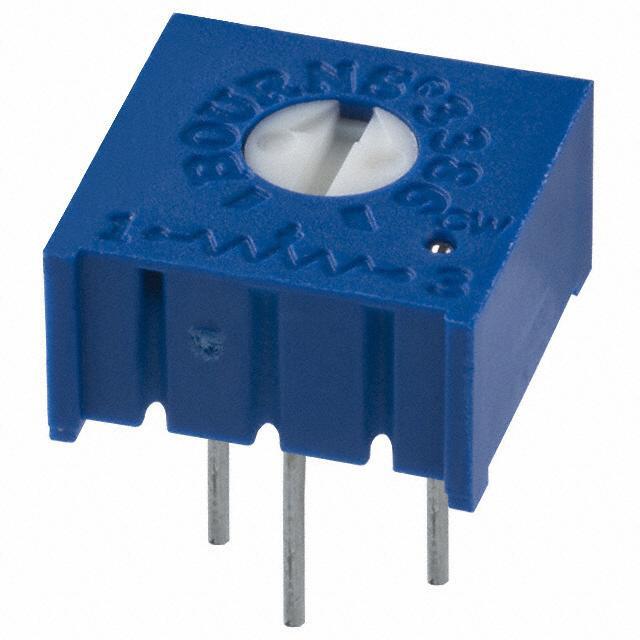

3386P-1-502LF

Part No 3386P-1-502LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turns 3.15mm (9.53 X 9.53 X 4.83mm) Pin Thru-Hole Tube / TRIMMER 5K OHM 0.5W PC PIN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face x 0.190" H (9.53mm x 9.53mm x 4.83mm)
Win Source Part Number 20080-3386P-1-502LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Family Name 3386
Introduction Date June 20, 2000
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 3386P-1-502LF CAD Model

Description

3386P-1-502LF Precision Potentiometer

The 3386P-1-502LF potentiometer delivers exceptional performance for precision tuning and modifications in electronic circuits. Its robust design ensures stability and longevity, making it a favored choice for complex devices.

  • Network Equipment
  • Digital Displays
  • Control Panels
  • Feedback Systems
  • Telecommunications

Features and Benefits:

  • Consistent Performance: Engineered to deliver consistent resistance over its lifespan.
  • High Durability: Built to resist wear and tear, ensuring long-term functionality.
  • Space-Saving Profile: Compact design facilitates ease of integration into small and complex devices.

This potentiometer stands out for its reliable performance in both high and low-stress applications, offering versatility and precision tuning.
