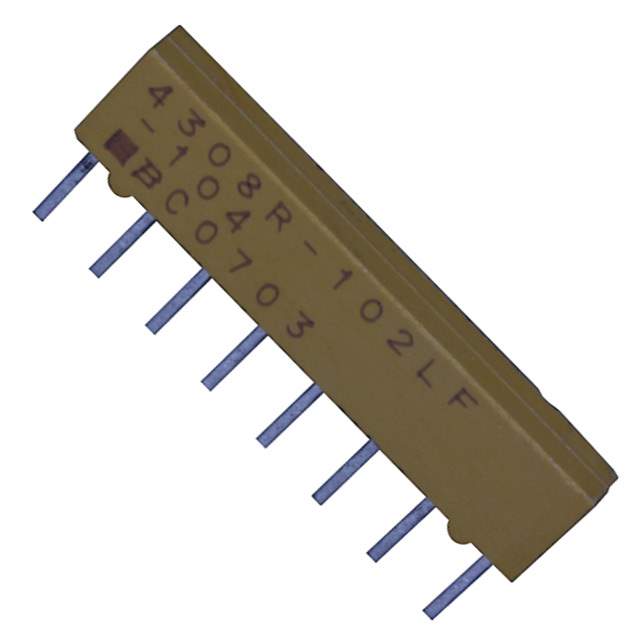

4308R-102-821LF

Part No 4308R-102-821LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 820 OHM 8SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Circuit Type Isolated
Resistance (Ohms) 820
Tolerance ±2%
Number of Resistors 4
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 8
Power Per Element 300mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package 8-SIP
Supplier Device Package 8-SIP
Parts Dimension 0.784" L x 0.085" W (19.91mm x 2.16mm)
Height - Seated (Maximum) 0.195" (4.95mm)
Family Part Number 4308R
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 729039-4308R-102-821LF
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4308R-102-821LF CAD Model

Description

4308R-102-821LF from Bourns Inc. is a resistor network/array component used in designs that benefit from compact resistor integration instead of placing multiple discrete resistors individually. Parts in this category are commonly selected for signal conditioning, pull-up or pull-down functions, line termination, bias networks, and space-conscious PCB layouts in industrial, consumer, communications, and embedded control equipment. For engineers, the value of a resistor array is board-space efficiency, assembly simplification, and more consistent multi-resistor implementation within a single package. For procurement teams, this part may also help streamline BOM management when a network format fits the design intent. The current lifecycle status for 4308R-102-821LF is information not available, so designers should confirm availability and long-term supply directly with Bourns Inc. or an authorized distributor before locking it into new programs. RoHS compliance information is also not available from the provided data and should be verified through the official datasheet, compliance certificate, or manufacturer support channel.
