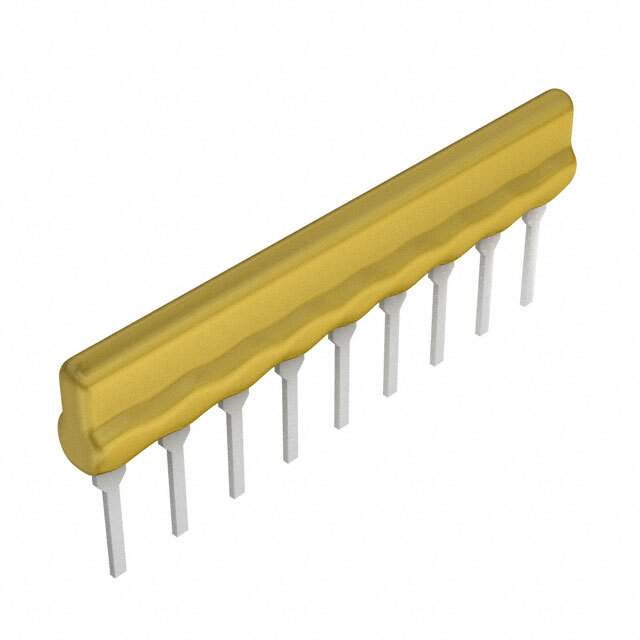

4609X-101-103LF Real Image
Same model may have multiple batches, images only for reference.

4609X-101-103LF

Part No 4609X-101-103LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 10K OHM 9SIP  /  10k Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Datasheet
4609X-101-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600X
Package Bulk
Circuit Type Bussed
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 8
Number of Pins 9
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 9-SIP
Supplier Device Package 9-SIP
Dimension 0.898" L x 0.098" W (22.81mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4609X
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Other Names Q5136317AAB,4609X101103LF
Standard Package 200
Win Source Part Number 975501-4609X-101-103LF
Ultra Librarian 3D Model Ultra Librarian 4609X-101-103LF CAD Model

Description

The 4600X series resistor network array from Bourns Inc. is a bussed circuit type component with a total of 8 resistors and 9 pins.

  • Resistance: 10k ohms
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power per Element: 200mW
  • Mounting Type: through-hole
  • Package/Case: 9-SIP
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.898" L x 0.098" W (22.81mm x 2.49mm)
  • Packaging: bulk
  • Standard Package: 200
