Same model may have multiple batches, images only for reference.

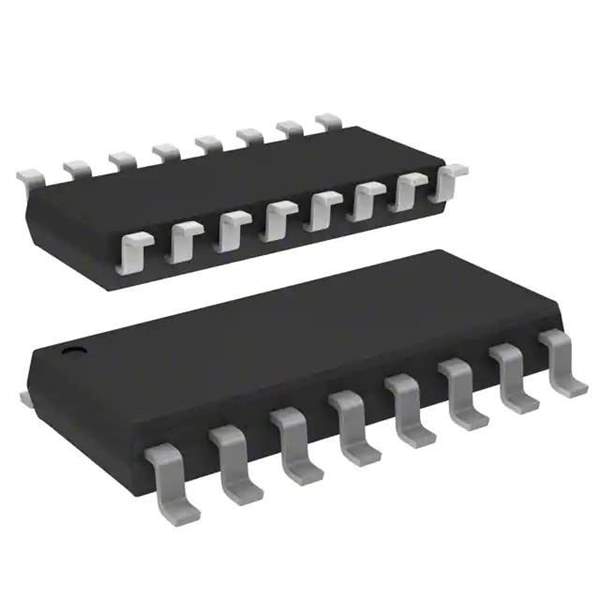

4816P-1-103 Real Image
Same model may have multiple batches, images only for reference.

4816P-1-103

Part No 4816P-1-103
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RNET-THK FILM SMD MED BODY
Datasheet
4816P-1-103 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4800P
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 8
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 16
Power Per Element 160mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 16-SOIC (0.220", 5.59mm Width)
Supplier Device Package 16-SOM
Size / Dimension 0.440" L x 0.220" W (11.18mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 546108-4816P-1-103
Ultra Librarian 3D Model Ultra Librarian 4816P-1-103 CAD Model

Description

The 4800P is a resistor network array designed for various electronic applications.

  • Manufacturer: Bourns Inc.
  • Size/dimension: 0.440" L x 0.220" W (11.18mm x 5.59mm)
  • Package: tape & reel
  • Standard package: 2,000 pcs
  • Tolerance: ±2%
  • Temperature coefficient: ±100ppm/°C
  • Resistance: 10k Ohms
  • Circuit type: isolated
  • Resistors: 8
  • Pins: 16
  • Power per element: 160mW
  • Mounting: surface mount
  • Package/case: 16-SOIC (0.220", 5.59mm Width)
  • Supplier device package: 16-SOM
  • Operating temperature range: from -55°C to 125°C
  • ECCN: EAR99
  • REACH: affected by REACH regulations
  • HTSUS code: 8533.21.0020
  • California Prop 65: compliant
