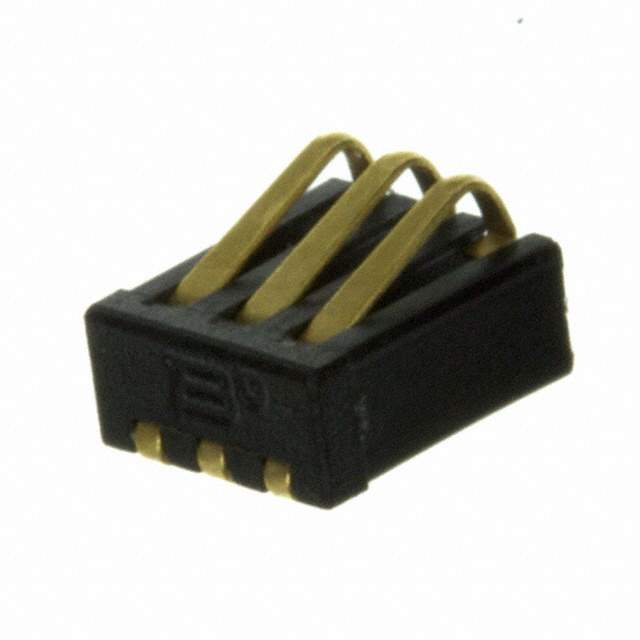

Same model may have multiple batches, images only for reference.

70ABJ-3-M0E

Name: 70ABJ-3-M0E
Brand: Bourns Inc.
SKU: 1285247
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	70ABJ-3-M0E
Manufacturer	Bourns Inc.
Catalog	Rectangular Connectors
Datasheet	70ABJ-3-M0E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Spring Loaded
Mfr	Bourns Inc.
Series	70AB
Package	Tape & Reel
Connector Type	Compression Contact, Male
Number of Contacts	3
Pitch	0.050" (1.27mm)
Number of Rows	1
Mounting	SMD (SMT)
Material	Copper Alloy
Base Product Number	70ABJ
Other Names	70ABJ-3-M0ECT,70ABJ3M0E,70ABJ-3-M0ETR,70ABJ-3-M0EDKR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285247-70ABJ-3-M0E
Ultra Librarian 3D Model	Ultra Librarian 70ABJ-3-M0E CAD Model

Alternative Products

Description

The 70ABJ-3-M0E is a male compression contact rectangular connector manufactured by Bourns Inc.

Pitch: 0.050" (1.27mm)
Mounting: Surface mount device
Number of Rows: 1
Row Spacing: Not specified
Contacts: 3
Contact Finish: Not specified
Contact Finish Thickness: Not specified
Material: Copper alloy
Package: Tape & reel
RoHS Compliant: Yes
MSL Level: 1 (unlimited)
REACH: Unaffected
HTSUS code: 8536.69.4040
