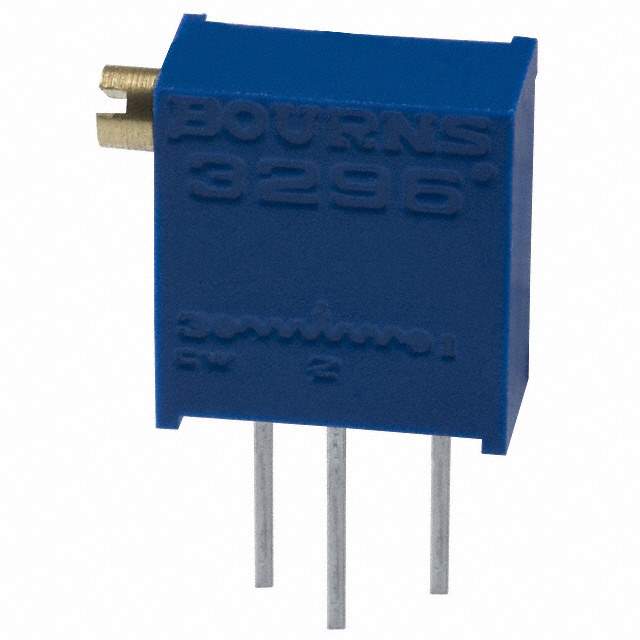

3296Z-1-102 Real Image
Same model may have multiple batches, images only for reference.

3296Z-1-102

Part No 3296Z-1-102
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.5W PC PIN SIDE / 1 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
Datasheet
3296Z-1-102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Tube
Resistance 1 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm)
Base Product Number 3296Z
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number 3296Z-102
Standard Package 100
Win Source Part Number 1325987-3296Z-1-102
Ultra Librarian 3D Model Ultra Librarian 3296Z-1-102 CAD Model

Description

The 3296Z-1-102 is a trimmer potentiometer from Bourns Inc.

  • Resistive Material: Cermet
  • Resistance: 1 kOhms
  • Adjustment Type: Side Adjustment
  • Number of Turns: 25
  • Power: 0.5W, 1/2W
  • Temperature Coefficient: ±100ppm/°C
  • Tolerance: ±10%
  • Packaging: Tube
  • Standard Package: 100
  • Termination Style: PC Pins
  • Size/Dimension: Rectangular - 0.395 inches x 0.190 inches face (10.03mm x 4.83mm)
  • MSL Level: Not Applicable
  • REACH Status: REACH Affected
  • HTSUS: 8533.40.8050
