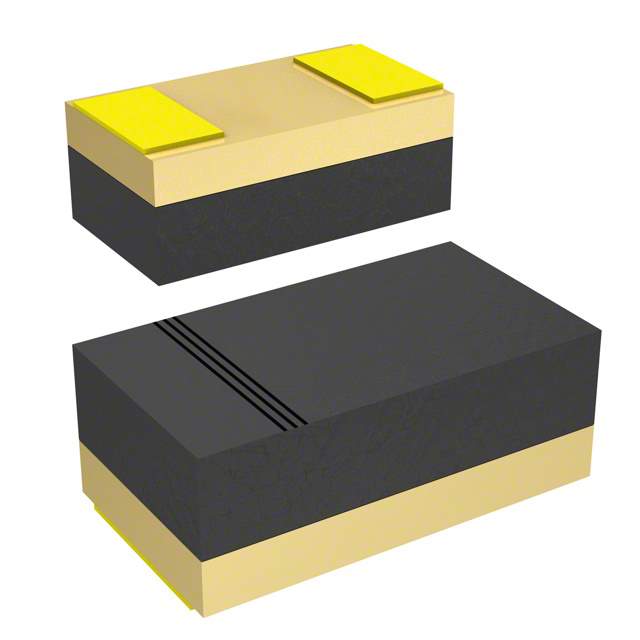

CD0603-T24C Real Image
Same model may have multiple batches, images only for reference.

CD0603-T24C

Part No CD0603-T24C
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 47VC 0603 / 47V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 0603
Datasheet
CD0603-T24C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Bourns Inc.
Package Tape & Reel
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 25V
Voltage - Clamping (Max) @ Ipp 47V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Base Product Number CD0603
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350894-CD0603-T24C
Ultra Librarian 3D Model Ultra Librarian CD0603-T24C CAD Model

Description

The CD0603 series from Bourns Inc. is a bidirectional zener transient voltage suppressor (TVS) diode with a voltage reverse standoff of 24V (max) and a breakdown voltage of 25V.

  • Type: Zener TVS Diode
  • Direction: Bidirectional
  • Voltage - Reverse Standoff (Max): 24V
  • Breakdown Voltage: 25V
  • Package: Tape and Reel
  • Standard Package: 4,000
  • Capacitance @ Frequency: 10pF @ 1MHz
  • Current - Peak Pulse (10/1000µs): 1A (8/20µs)
  • Package / Case: 0603 (1608 metric)
  • ECCN: EAR99
  • MSL: Level 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Status: Obsolete
