Same model may have multiple batches, images only for reference.

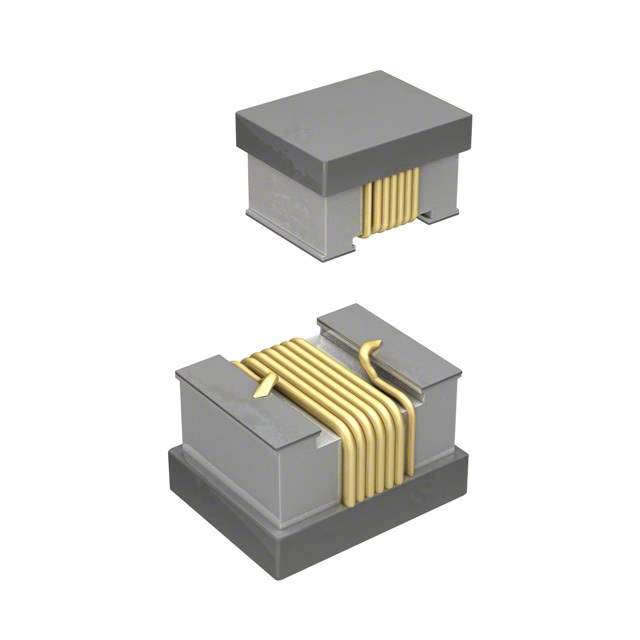

CW252016-R33J Real Image
Same model may have multiple batches, images only for reference.

CW252016-R33J

Part No CW252016-R33J
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 330NH 500MA 1.05OHM SM / 330 nH Unshielded Drum Core, Wirewound Inductor 500 mA 1.05Ohm Max 1008 (2520 Metric)
Datasheet
CW252016-R33J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 330 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 1.05Ohm Max
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 570MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Base Product Number CW252016
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number CW252016-R33J-ND,CW252016-R33JTR,CW252016-R33JCT,CW252016R33J,CW252016-R33JDKR
Standard Package 2,000
Win Source Part Number 1327798-CW252016-R33J
Ultra Librarian 3D Model Ultra Librarian CW252016-R33J CAD Model

Description

Bourns Inc. offers a high-quality fixed inductor, CW252016-R33J, that is designed to meet the requirements of modern electronic equipment.

  • Type: Wirewound, Drum Core
  • Shielding: Unshielded
  • Core Material: Ceramic
  • Standard Package: 2,000
  • Mounting Type: Surface Mount
  • Height - Seated (Max): 0.071 inches
  • Size Dimension: 0.098 inches in length and 0.079 inches in width
  • Inductance: 330 nH
  • Tolerance: ±5%
  • Frequency of Self-Resonance: 570 MHz
  • Q @ Freq: 45 @ 100MHz
  • DC Resistance (DCR): 1.05 Ohm Max
  • Current Rating: 500 mA
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
