Same model may have multiple batches, images only for reference.

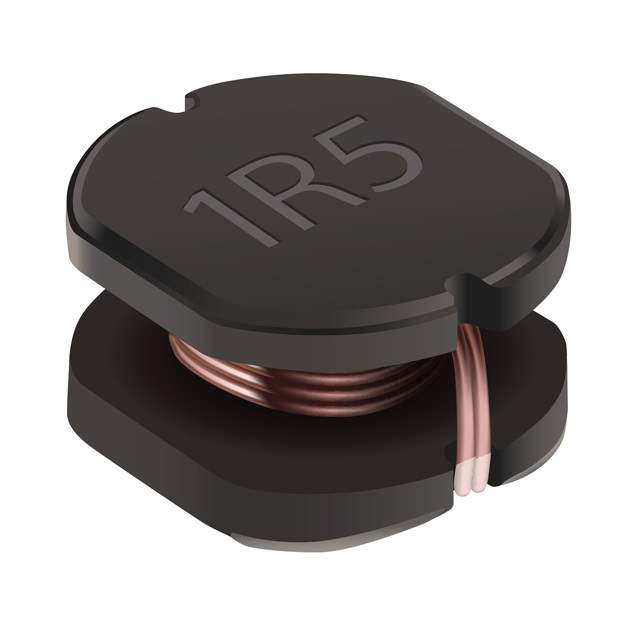

SDE1006A-6R8M Real Image
Same model may have multiple batches, images only for reference.

SDE1006A-6R8M

Part No SDE1006A-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE1006A-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE1006A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 4.6A
Shielding Unshielded
DC Resistance (DCR) 44mOhm Max
Frequency - Self Resonant 32.1MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) 0.228" (5.80mm)
Base Product Number SDE1006A
Other Names SDE1006A-6R8M,SDE1006A-6R8MTR,SDE1006A-6R8MCT,SDE1006A-6R8MDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274872-SDE1006A-6R8M
Ultra Librarian 3D Model Ultra Librarian SDE1006A-6R8M CAD Model

Description

The Bourns Inc. SDE1006A-6R8M is an unshielded fixed inductor with a nonstandard package.

  • Height: 0.228 inches (5.80mm)
  • Dimension: 0.394 inches L x 0.354 inches W (10.00mm x 9.00mm)
  • Series: SDE1006A
  • Inductance: 6.8 µH
  • Current Rating: 4.2 A
  • DC Resistance (DCR): 44mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • AEC-Q200 Compliant: Yes
  • ECCN: EAR99
