Same model may have multiple batches, images only for reference.

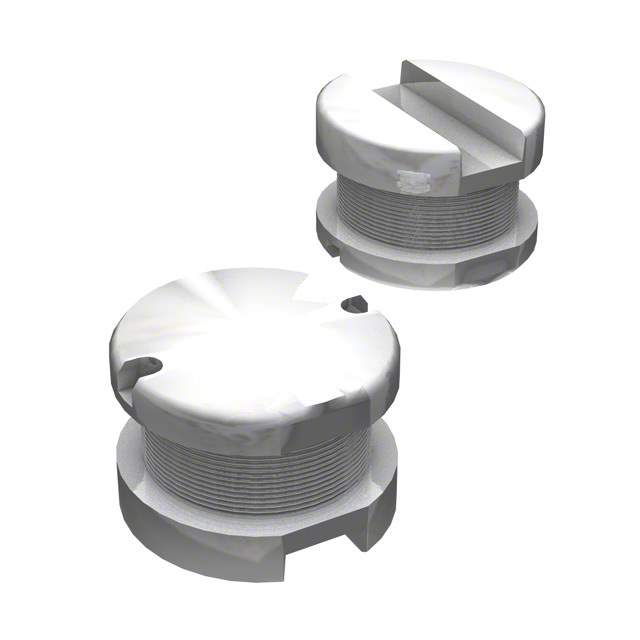

SDR0603-680KL Real Image
Same model may have multiple batches, images only for reference.

SDR0603-680KL

Part No SDR0603-680KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-680KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 440 mA
Current - Saturation (Isat) 540mA
Shielding Unshielded
DC Resistance (DCR) 720mOhm Max
Q @ Freq 17 @ 2.52MHz
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Other Names -SDR0603-680KLTR,SDR0603-680KLCT,-SDR0603-680KLCT,SDR0603680KL,SDR0603-680KLTR,-SDR0603-680KL
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274762-SDR0603-680KL
Ultra Librarian 3D Model Ultra Librarian SDR0603-680KL CAD Model

Description

The Bourns Inc. SDR0603-680KL is a fixed inductor that is categorized under inductors, coils, and chokes.

  • Series: SDR0603
  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Package: Tape and Reel (TR) and Cut Tape (CT)
  • Standard Package: 400
  • Inductance: 68 µH
  • Tolerance: ±10%
  • Material: Ferrite
  • Q @ Freq: 17 @ 2.52MHz
  • Frequency Self-Resonant: 12MHz
  • DC Resistance (DCR): 720mOhm Max
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT)
