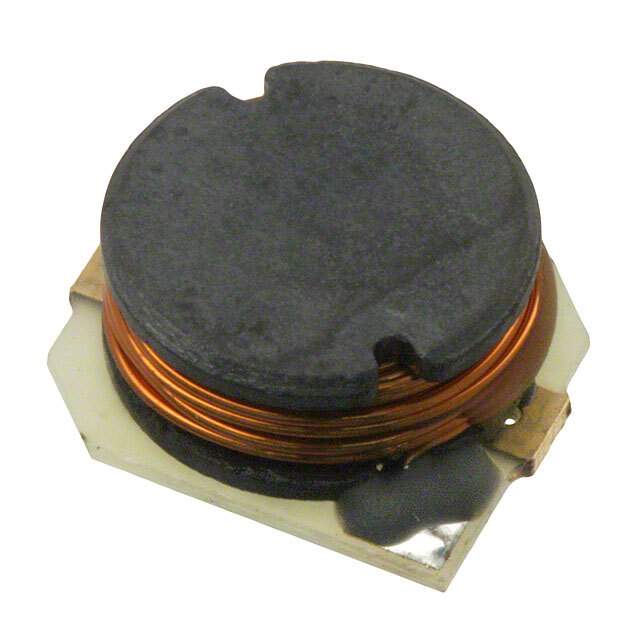

Same model may have multiple batches, images only for reference.

SDR1105-150ML

Name: SDR1105-150ML
Brand: Bourns Inc.
SKU: 1274612
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SDR1105-150ML
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDR1105-150ML Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1105
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	3.5 A
Current - Saturation (Isat)	8A
Shielding	Unshielded
DC Resistance (DCR)	52mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max)	0.197" (5.00mm)
Base Product Number	SDR1105
Other Names	SDR1105-150ML,SDR1105-150MLTR,SDR1105-150MLDKR,SDR1105-150MLCT
Standard Package	800
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274612-SDR1105-150ML
Ultra Librarian 3D Model	Ultra Librarian SDR1105-150ML CAD Model

Alternative Products

Description

The SDR1105 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel package.

Shielding: Unshielded
Inductance: 15 µH
Tolerance: ±20%
Core Material: Ferrite
DC Resistance (DCR): 52 mOhm Max
Current Rating: 3.5 A
Operating Temperature: -40°C to 125°C
Applications: Power supplies, DC/DC converters, and filtering circuits
