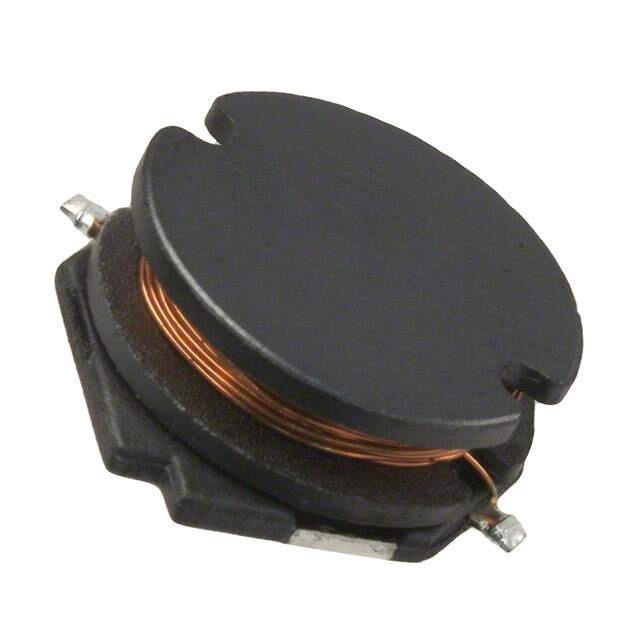

SDR1305-680M Real Image
Same model may have multiple batches, images only for reference.

SDR1305-680M

Part No SDR1305-680M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1305-680M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1305
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 1.65 A
Current - Saturation (Isat) 1.8A
Shielding Unshielded
DC Resistance (DCR) 165mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SDR1305
Other Names 118-SDR1305-680MCT,118-SDR1305-680MDKR,118-SDR1305-680MTR,SDR1305-680M
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274602-SDR1305-680M
Ultra Librarian 3D Model Ultra Librarian SDR1305-680M CAD Model

Description

The SDR1305-680M inductor from Bourns Inc. is a wirewound drum core type inductor with an inductance of 68 µH.

  • Shielding: Unshielded
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 22 @ 2.52MHz
  • Frequency Self-Resonant: 11MHz
  • DC Resistance (DCR): 165mOhm Max
  • Current Rating: 1.65 A
  • Mounting: SMD (SMT)
  • Package/Case: Nonstandard
  • Operating Temperature: -40°C to 125°C
  • Dimensions: 0.500” L x 0.500” W (12.70mm x 12.70mm)
  • REACH: Unaffected
  • ECCN: EAR99
