Same model may have multiple batches, images only for reference.

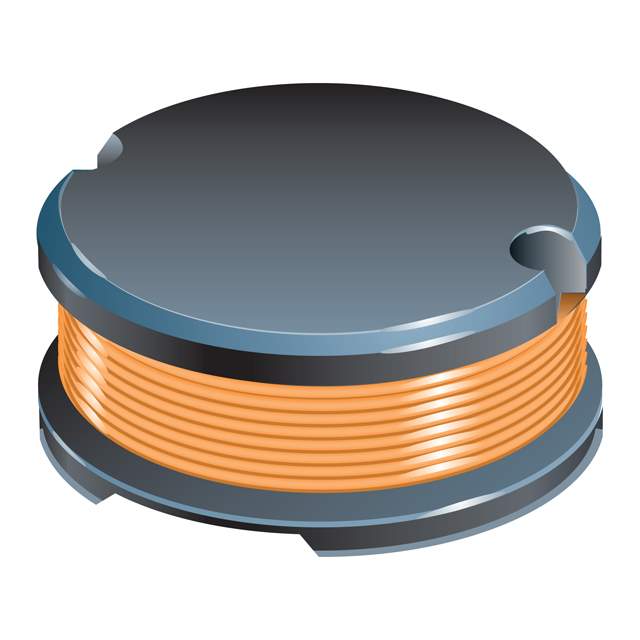

SDR1307A-180M Real Image
Same model may have multiple batches, images only for reference.

SDR1307A-180M

Part No SDR1307A-180M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307A-180M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 18 µH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 7A
Shielding Unshielded
DC Resistance (DCR) 36mOhm Max
Q @ Freq 28 @ 2.52MHz
Frequency - Self Resonant 16MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-180MTR,SDR1307A-180M,SDR1307A-180MCT,SDR1307A-180MDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274575-SDR1307A-180M
Ultra Librarian 3D Model Ultra Librarian SDR1307A-180M CAD Model

Description

The SDR1307A-180M is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Unshielded
  • Core Material: Ferrite
  • Inductance: 18 µH
  • Tolerance: ±20%
  • DC Resistance: 36mOhm Max
  • Current Rating: 4.2 A
  • Q @ Freq: 28 @ 2.52MHz
  • Frequency - Self-Resonant: 16MHz
  • Package/Case: Nonstandard
  • Packaging: Tape & reel
