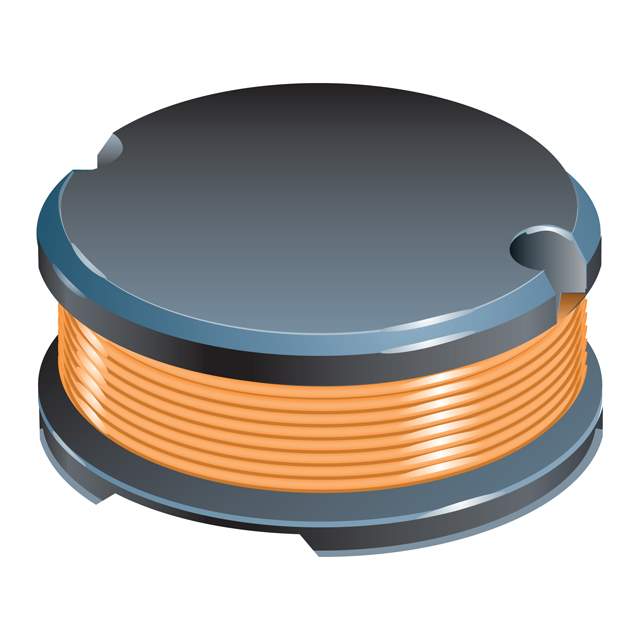

SDR1307A-221K

Part No SDR1307A-221K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 2.1A
Shielding Unshielded
DC Resistance (DCR) 360mOhm Max
Q @ Freq 15 @ 796kHz
Frequency - Self Resonant 3.8MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-221K,SDR1307A-221KTR,SDR1307A-221KTR,SDR1307A-221KCT,SDR1307A-221KDKR,118-SDR1307A-221KTR,SDR1307A-221KCT,SDR1307A-221KDKR,118-SDR1307A-221KCT,118-SDR1307A-221KDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274571-SDR1307A-221K
Ultra Librarian 3D Model Ultra Librarian SDR1307A-221K CAD Model

Description

The Bourns Inc. SDR1307A-221K is a fixed inductor that is part of the SDR1307A series.

  • Type: Drum core, wirewound
  • Package: Tape & reel
  • Shielding: Unshielded
  • Inductance: 220 μH
  • Tolerance: ±10%
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
