Same model may have multiple batches, images only for reference.

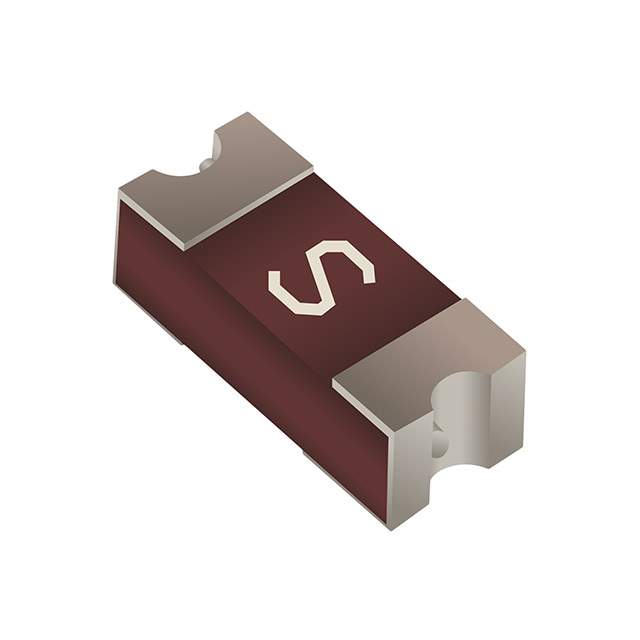

SF-2410FP075W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-2410FP075W-2

Part No SF-2410FP075W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-2410FP075W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-2410FPxxxW
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 750 mA
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2410 (6125 Metric)
Breaking Capacity @ Rated Voltage 100A AC, 50A DC
Melting I2t 0.23
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm)
DC Cold Resistance 0.148 Ohms
Base Product Number SF-2410
Other Names SF-2410FP075W-2DKR,SF-2410FP075W-2CT,SF-2410FP075W-2TR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1301982-SF-2410FP075W-2
Ultra Librarian 3D Model Ultra Librarian SF-2410FP075W-2 CAD Model

Description

The SinglFuse™ SF-2410FPxxxW series is a board mount fuse designed to provide protection against overcurrent. The SF-2410FP075W-2 is a part of this series and is manufactured by Bourns Inc.

  • Voltage Rating: 250V AC and 125V DC
  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 100A AC and 50A DC
  • DC Cold Resistance: 0.148Ω
  • Melting I2t: 0.23
  • Packaging: Tape and Reel
  • Standard Package: 2,000
  • Mounting: SMD (SMT)
  • Package/Case Size: 2410 (6125 Metric)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99 compliant
