Same model may have multiple batches, images only for reference.

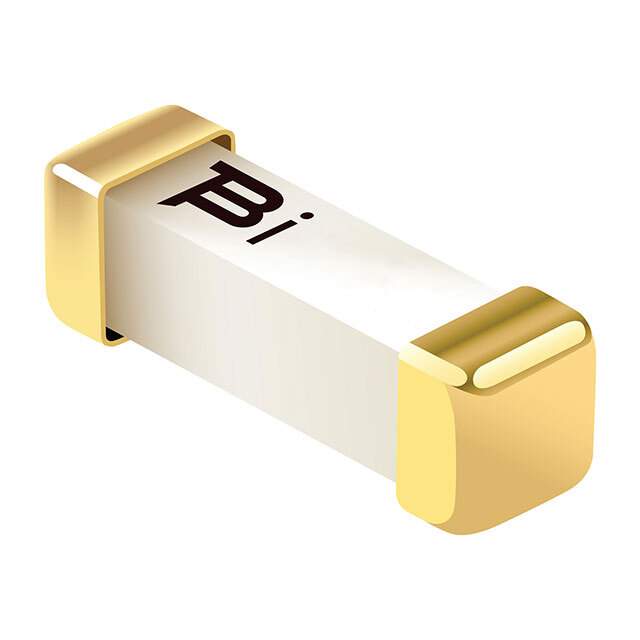

SF-3812F1000T-2 Real Image
Same model may have multiple batches, images only for reference.

SF-3812F1000T-2

Part No SF-3812F1000T-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-3812F1000T-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-3812F-T
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10 A
Voltage Rating - AC 250 V
Voltage Rating - DC 80 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 130A DC
Melting I2t 75
Approval Agency cUL, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm)
DC Cold Resistance 0.0067 Ohms
Base Product Number SF-3812
Other Names SF-3812F1000T-2TR,SF-3812F1000T-2DKR,SF-3812F1000T-2CT
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1301960-SF-3812F1000T-2
Ultra Librarian 3D Model Ultra Librarian SF-3812F1000T-2 CAD Model

Description

The SinglFuse SF-3812F-T series fuse by Bourns Inc. is a board mount component that is designed to protect electronic circuits from overcurrent.

  • Voltage Rating: 250 V AC and 80 V DC
  • Current Rating: 10 A
  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 100A AC and 130A DC
  • Melting I2t: 75
  • DC Cold Resistance: 0.0067 Ohms
  • Package/Case: 2-SMD, square end block
  • REACH: Affected
  • HTSUS: 8536.10.0040
