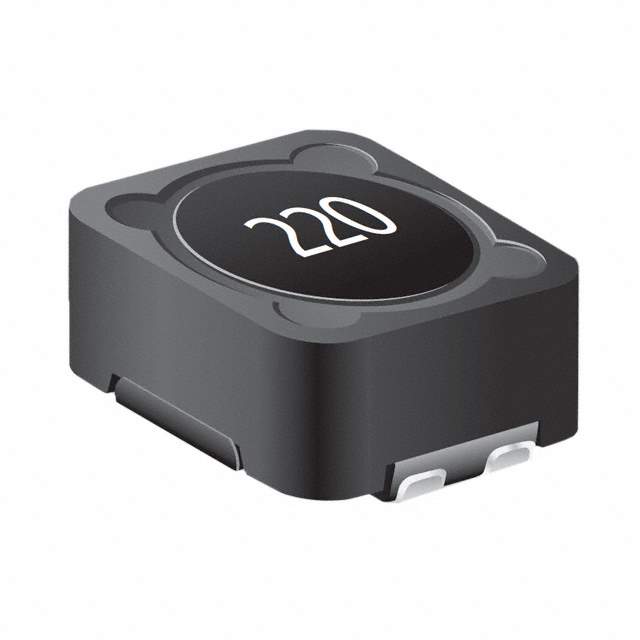

The SRF1260A-151M is a shielded inductor array from Bourns Inc.

• Number of Coils: Two
• Rating: AEC-Q200
• Inductance Series: 600 µH
• Inductance Parallel: 150 µH
• Tolerance: ±20%
• Current Rating Parallel: 1.48 A
• Current Rating Series: 739 mA
• Current Saturation Parallel: 1.81 A
• Current Saturation Series: 905 mA
• DC Resistance (DCR) Parallel: 254mOhm Max
• DC Resistance (DCR) Series: 972mOhm Max
• Package/Case: Nonstandard
• Mounting: SMD (SMT) technology
• Temperature Range: -40°C ~ 125°C
• Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
• Package: Tape and reel
• Standard Package: 400
• REACH: Unaffected
• ECCN: EAR99
• MSL Level: 1 (unlimited)
• Applications: Power supplies and filters
