Same model may have multiple batches, images only for reference.

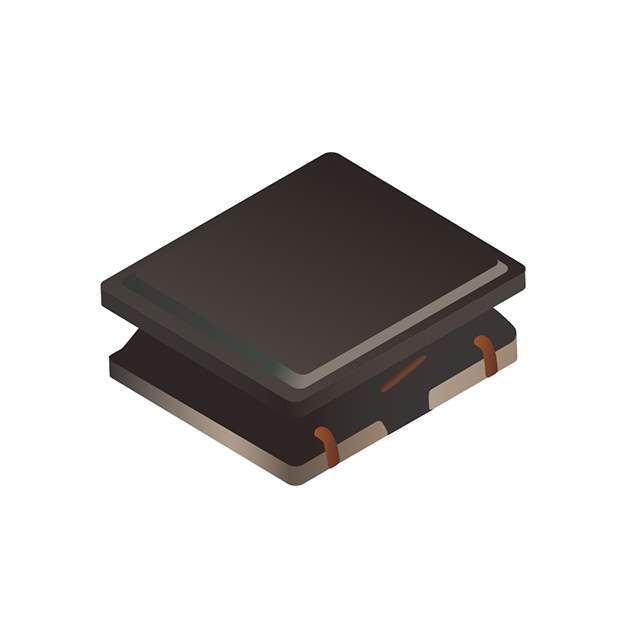

SRN2510F-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRN2510F-4R7M

Part No SRN2510F-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2510F-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2510F
Package Tape & Reel
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.7 A
Current - Saturation (Isat) 1.7A
Shielding Semi-Shielded
DC Resistance (DCR) 216mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN2510F
Other Names SRN2510F-4R7MCT,SRN2510F-4R7MTR,SRN2510F-4R7MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274404-SRN2510F-4R7M
Ultra Librarian 3D Model Ultra Librarian SRN2510F-4R7M CAD Model

Description

This product is an inductor, coil, or choke with a fixed inductance.

  • Shielding: Semi-shielded
  • Package: Tape and reel
  • Series: SRN2510F
  • Inductance: 4.7 µH
  • Height: 0.039" (1.00mm) when seated
  • Package/Case: 1008 (2520 Metric)
  • Maximum DC Resistance: 216mOhm
  • Tolerance: ±20%
  • Temperature Range: -40°C to 125°C
