Same model may have multiple batches, images only for reference.

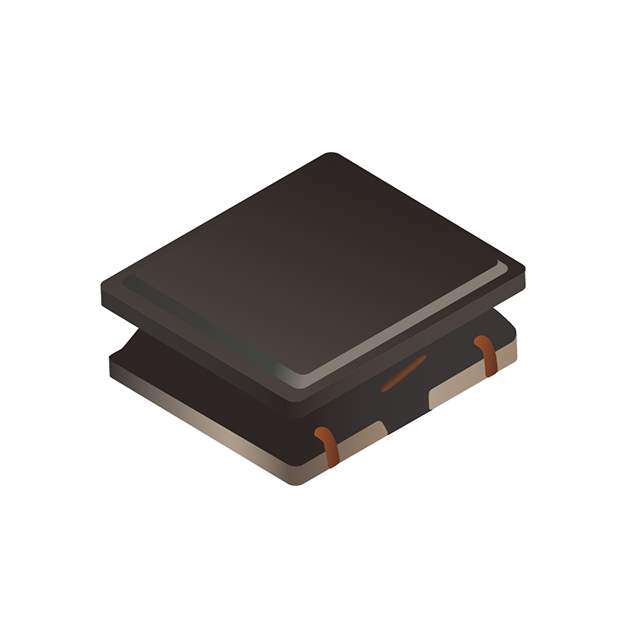

SRN2510F-R47M Real Image
Same model may have multiple batches, images only for reference.

SRN2510F-R47M

Part No SRN2510F-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2510F-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2510F
Package Tape & Reel
Material - Core Metal
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.6 A
Current - Saturation (Isat) 7A
Shielding Semi-Shielded
DC Resistance (DCR) 35mOhm Max
Frequency - Self Resonant 120MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN2510F
Other Names SRN2510F-R47MCT,SRN2510F-R47MTR,SRN2510F-R47MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274403-SRN2510F-R47M
Ultra Librarian 3D Model Ultra Librarian SRN2510F-R47M CAD Model

Description

The SRN2510F-R47M inductor is a semi-shielded fixed inductor designed by Bourns Inc.

  • Inductance: 470 nH
  • Tolerance: ±20%
  • DC Resistance: 35mOhm Max
  • Current Rating: 4.6 A
  • Frequency Self-Resonant: 120MHz
  • Package Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Mounting Type: SMD (SMT)
  • Core Material: Metal
  • Package: Nonstandard
  • Operating Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99 compliant
