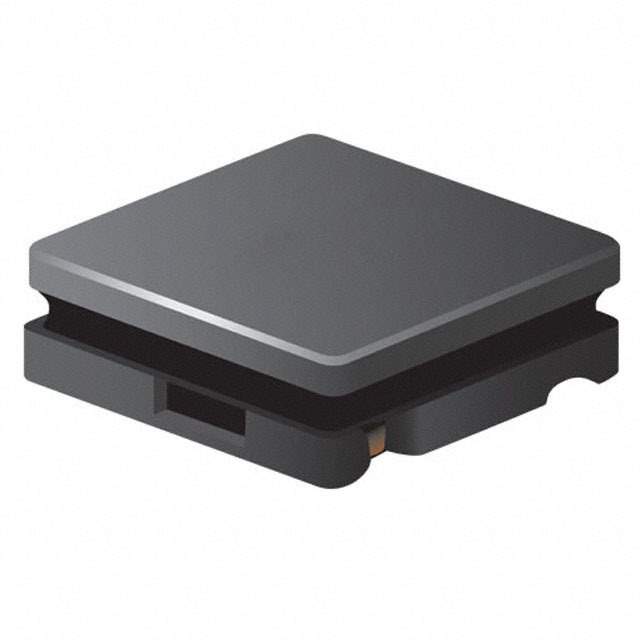

SRN3010-470M Real Image
Same model may have multiple batches, images only for reference.

SRN3010-470M

Part No SRN3010-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3010
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 350 mA
Current - Saturation (Isat) 280mA
Shielding Semi-Shielded
DC Resistance (DCR) 1.92Ohm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN3010
Other Names SRN3010-470MDKR,SRN3010-470MTR,SRN3010-470MCT,SRN3010470M
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274392-SRN3010-470M
Ultra Librarian 3D Model Ultra Librarian SRN3010-470M CAD Model

Description

The SRN3010 is a semi-shielded drum core inductor from Bourns Inc.

  • Inductance: 47 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q Value: 20 @ 2.52MHz
  • DC Resistance: 1.92Ohm Max
  • Current Rating: Up to 350mA
  • Package: Nonstandard
  • Device Rating: AEC-Q200
  • Frequency Self-Resonant: 16MHz
  • Height: 0.039" (1.00mm)
  • Temperature Range: -40°C to 125°C
