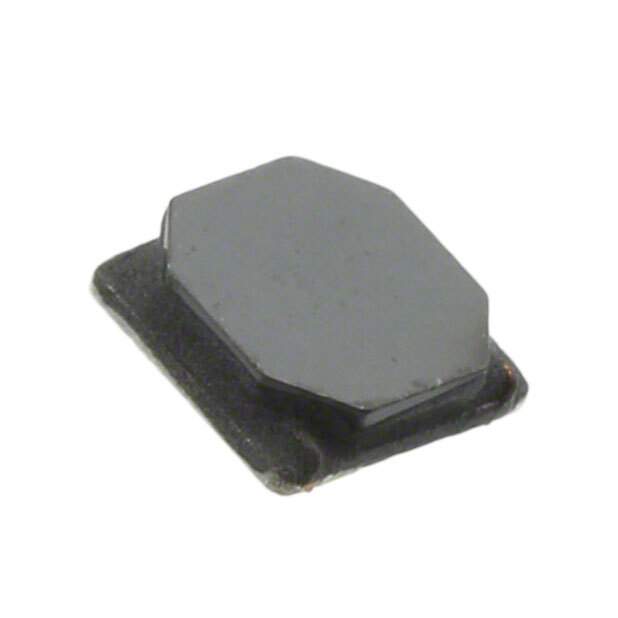

SRN4012T-R47M Real Image
Same model may have multiple batches, images only for reference.

SRN4012T-R47M

Part No SRN4012T-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4012T-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4012T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 4A
Shielding Semi-Shielded
DC Resistance (DCR) 25mOhm
Q @ Freq 6 @ 100kHz
Frequency - Self Resonant 140MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN4012T
Other Names SRN4012T-R47M-CT,SRN4012T-R47M-DKR,SRN4012T-R47M-TR
Standard Package 4,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274352-SRN4012T-R47M
Ultra Librarian 3D Model Ultra Librarian SRN4012T-R47M CAD Model

Description

The Bourns SRN4012T-R47M is a semi-shielded, drum core, wirewound inductor that is designed to be used in various electronic applications.

  • Inductance: 470 nH
  • Tolerance: ±20%
  • Current Rating: 3.2 A
  • Shielding Material: Ferrite
  • Mounting Type: SMD (SMT)
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 25mOhm
  • Q @ Freq: 6 @ 100kHz
  • Frequency - Self-Resonant: 140MHz
  • Temperature Range: -40°C to 125°C
  • AEC-Q200: Yes
  • Standard Package: 4,500
