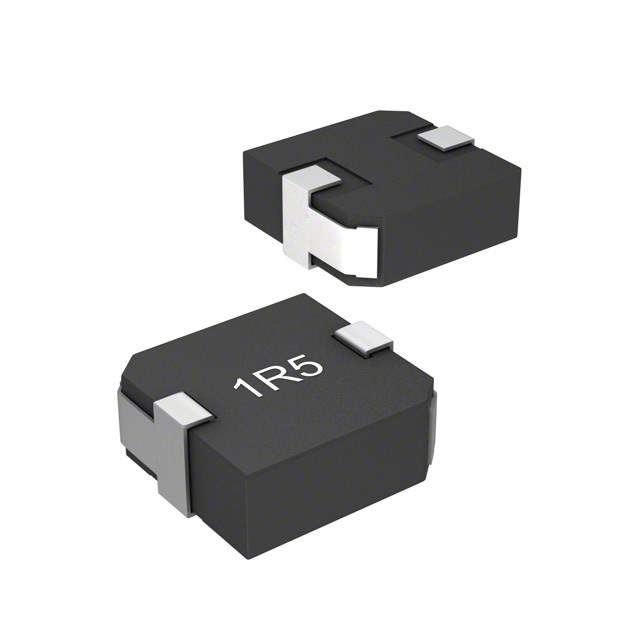

Same model may have multiple batches, images only for reference.

SRP1250-4R7M

Name: SRP1250-4R7M
Brand: Bourns Inc.
SKU: 1274055
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1250-4R7M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1250-4R7M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1250
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	12 A
Current - Saturation (Isat)	27A
Shielding	Shielded
DC Resistance (DCR)	15mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max)	0.205" (5.20mm)
Base Product Number	SRP1250
Other Names	SRP1250-4R7MDKR,SRP1250-4R7MCT,SRP1250-4R7MTR,-SRP1250-4R7MTR,SRP1250-4R7M,-SRP1250-4R7M,-SRP1250-4R7MCT,-SRP1250-4R7M,SRP12504R7M
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274055-SRP1250-4R7M
Ultra Librarian 3D Model	Ultra Librarian SRP1250-4R7M CAD Model

Alternative Products

Description

The Bourns Inc. SRP1250-4R7M is a shielded drum core, wirewound inductor that has an inductance of 4.7 µH.

Tolerance: ±20%
DC Resistance (DCR): 15mOhm max
Material: Iron
Current Rating: 12 A
Inductance Frequency-Test: 100 kHz
Height: 0.205"
Package / Case: Nonstandard
Mounting: SMD (SMT)
Operating Temperatures: -55°C to 150°C
Series Current Saturation (Isat): 27A
Packaging: Tape and Reel
Standard Package: 500 Pieces
