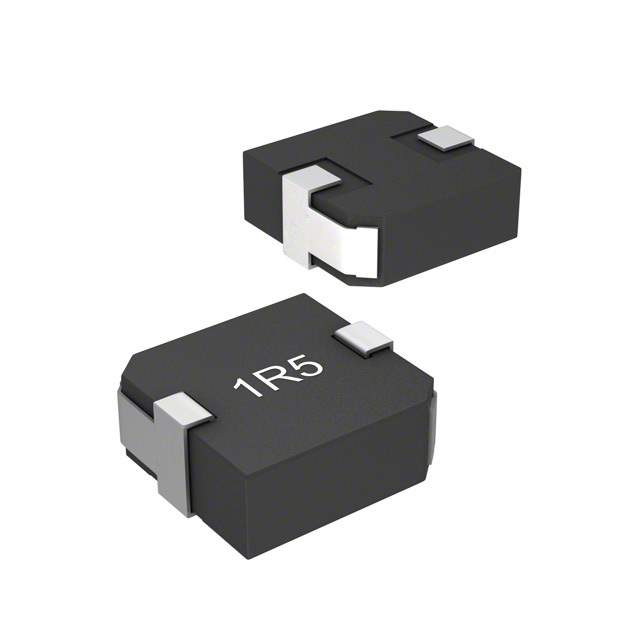

Same model may have multiple batches, images only for reference.

SRP1250-R22M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1250-R22M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1250-R22M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1250
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	220 nH
Tolerance	±20%
Current Rating (Amps)	45 A
Current - Saturation (Isat)	80A
Shielding	Shielded
DC Resistance (DCR)	1mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max)	0.232" (5.90mm)
Base Product Number	SRP1250
Other Names	118-SRP1250-R22MTR,SRP1250R22M,SRP1250-R22MCT,SRP1250-R22M,SRP1250-R22MTR,SRP1250-R22MCT,SRP1250-R22MTR,SRP1250-R22MDKR,118-SRP1250-R22MDKR,SRP1250-R22MDKR,118-SRP1250-R22MCT
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1274056-SRP1250-R22M
Ultra Librarian 3D Model	Ultra Librarian SRP1250-R22M CAD Model

Alternative Products

Description

The Bourns SRP1250-R22M is a shielded fixed inductor with a drum core and wirewound type.

Inductance: 220 nH
Tolerance: ±20%
Height: 0.232 inches (5.90mm)
Dimension: 0.547 inches L x 0.531 inches W (13.90mm x 13.50mm)
Package: Tape and Reel
Pieces: 500
Supplier Device Package: Non-Standard
Material: Iron
DC Resistance (DCR): 1mOhm Max
Current Rating: 45 A
Temperature Range: -55°C to 150°C
