Same model may have multiple batches, images only for reference.

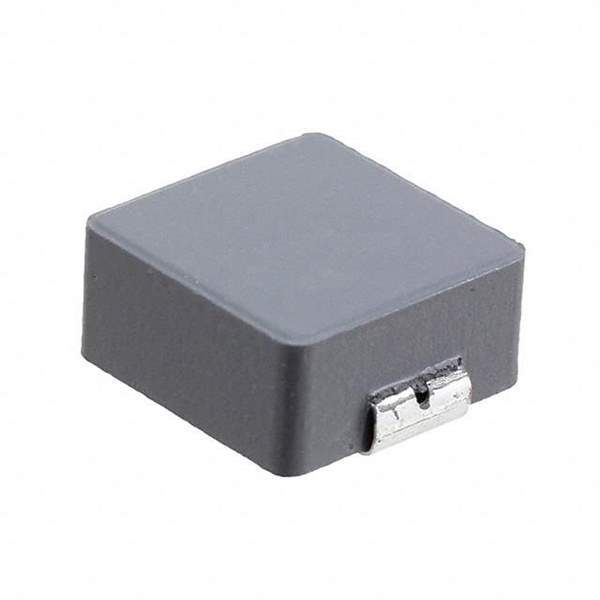

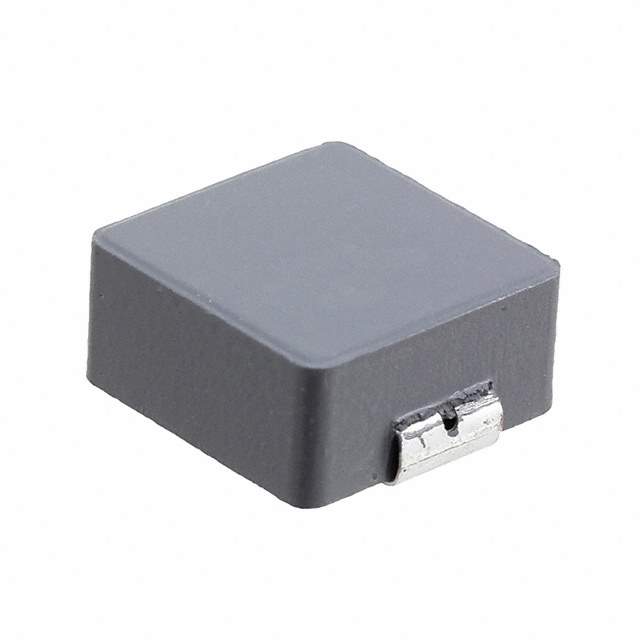

SRP1265A-1R5M Real Image
Same model may have multiple batches, images only for reference.

SRP1265A-1R5M

Part No SRP1265A-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1265A-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1265A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 27 A
Current - Saturation (Isat) 45A
Shielding Shielded
DC Resistance (DCR) 3mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 30MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.252" (6.40mm)
Base Product Number SRP1265A
Other Names SRP1265A-1R5MCT,SRP1265A-1R5MTR,SRP1265A-1R5MDKR,2266-SRP1265A-1R5M
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274047-SRP1265A-1R5M
Ultra Librarian 3D Model Ultra Librarian SRP1265A-1R5M CAD Model

Description

The Bourns Inc. SRP1265A-1R5M is a drum core, wirewound inductor that is shielded and mounted on a tape and reel package.

  • Inductance: 1.5μH
  • Tolerance: ±20%
  • Current Rating: 27A
  • Saturation Current: 45A
  • Frequency Self-Resonant: 30MHz
  • Q @ Freq: 20 @ 100kHz
  • Ratings: AEC-Q200
  • Temperature Range: -40°C to 150°C
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8504.50.4000
