Same model may have multiple batches, images only for reference.

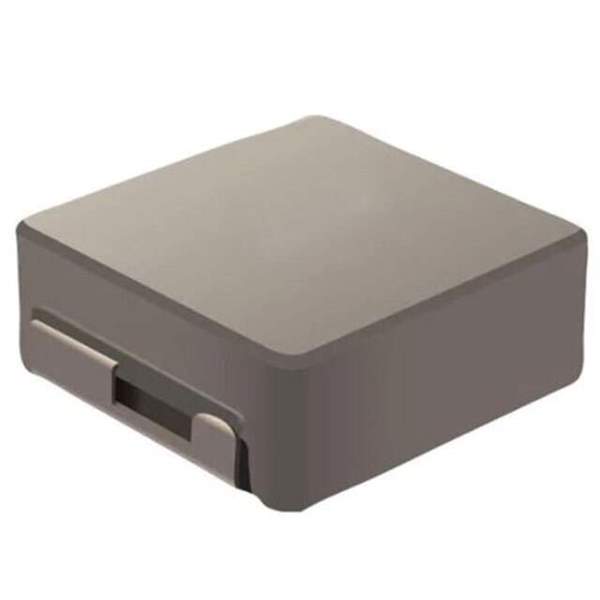

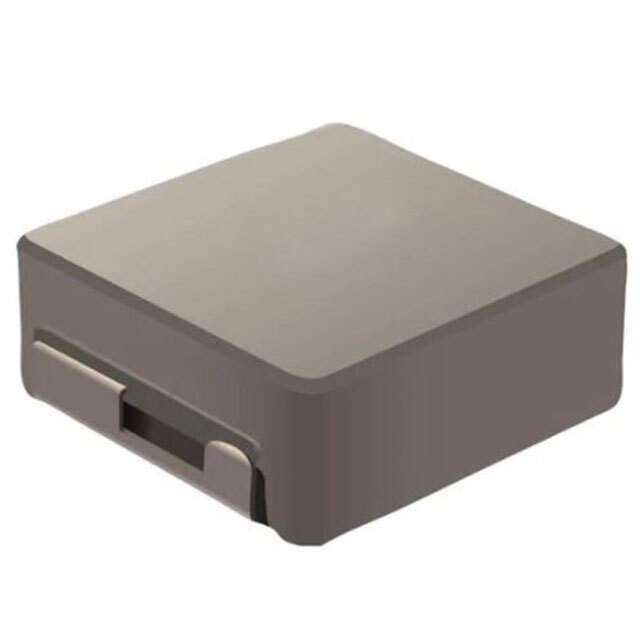

SRP1770C-2R2M Real Image
Same model may have multiple batches, images only for reference.

SRP1770C-2R2M

Part No SRP1770C-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1770C-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1770C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 40 A
Current - Saturation (Isat) 45A
Shielding Shielded
DC Resistance (DCR) 2.8mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 21MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.701" L x 0.665" W (17.80mm x 16.90mm)
Height - Seated (Max) 0.276" (7.00mm)
Other Names SRP1770C-2R2MCT,SRP1770C-2R2MTR,SRP1770C-2R2MDKR
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274019-SRP1770C-2R2M
Ultra Librarian 3D Model Ultra Librarian SRP1770C-2R2M CAD Model

Description

The SRP1770C-2R2M is a shielded drum core wirewound inductor from Bourns Inc.

  • Package: Tape and reel
  • Mounting: SMD (SMT)
  • Standard Package: 200
  • Tolerance: ±20%
  • Core Material: Metal
  • Q @ Freq: 20 @ 100kHz
  • Frequency Self-Resonant: 21MHz
  • DC Resistance (DCR): 2.8mOhm max
  • Current Rating (Amps): 40A
  • Inductance Frequency Test: 100 kHz
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.701" L x 0.665" W (17.80mm x 16.90mm)
  • ECCN: EAR99
  • REACH: Unaffected
