Same model may have multiple batches, images only for reference.

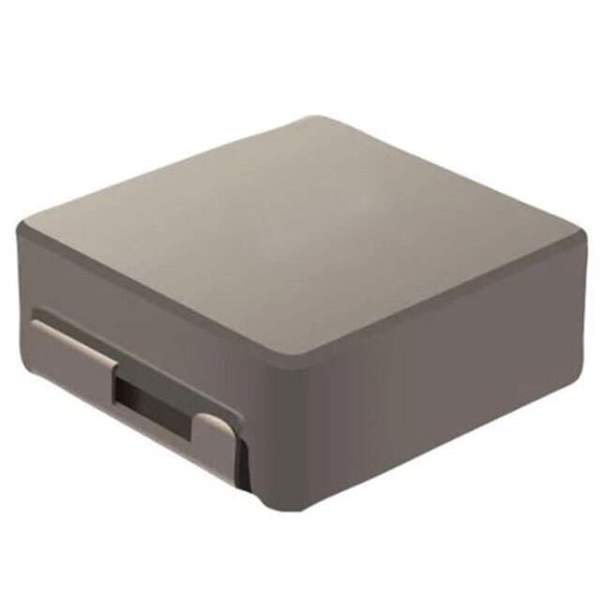

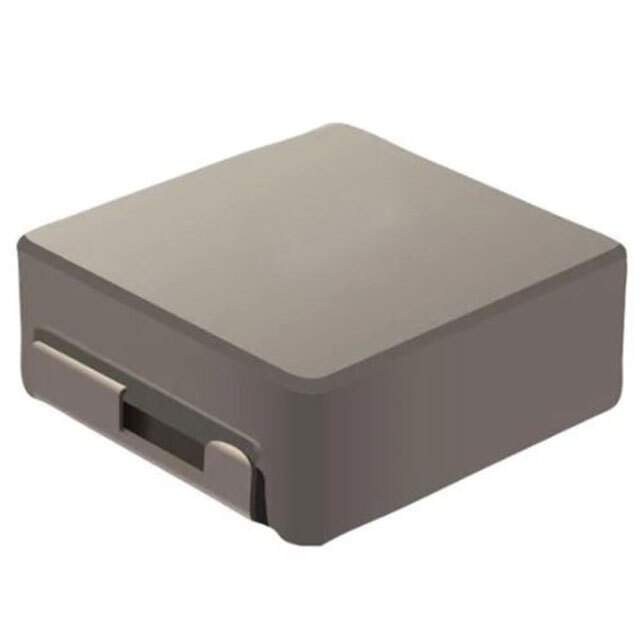

SRP1770C-470M Real Image
Same model may have multiple batches, images only for reference.

SRP1770C-470M

Part No SRP1770C-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1770C-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1770C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 8.7 A
Current - Saturation (Isat) 13A
Shielding Shielded
DC Resistance (DCR) 53mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.701" L x 0.665" W (17.80mm x 16.90mm)
Height - Seated (Max) 0.276" (7.00mm)
Other Names SRP1770C-470MTR,SRP1770C-470MCT,SRP1770C-470MDKR
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274014-SRP1770C-470M
Ultra Librarian 3D Model Ultra Librarian SRP1770C-470M CAD Model

Description

The SRP1770C-470M is a wirewound drum core inductor from Bourns Inc. that features a metal core and is shielded to prevent electromagnetic interference.

  • Package: 200
  • Mounting Type: SMD (SMT)
  • Inductance: 47 µH
  • Tolerance: ±20%
  • DC Resistance: 53 mOhm max
  • Current Rating: 8.7 A
  • Q @ Freq: 20 @ 100kHz
  • Frequency Self-Resonant: 7MHz
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.701" L x 0.665" W (17.80mm x 16.90mm)
