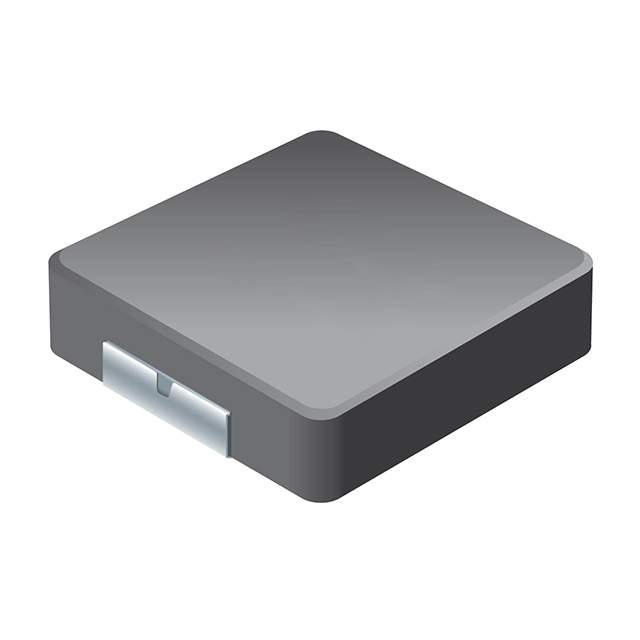

Same model may have multiple batches, images only for reference.

SRP3020TA-1R0M

Name: SRP3020TA-1R0M
Brand: Bourns Inc.
SKU: 1273953
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP3020TA-1R0M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP3020TA-1R0M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP3020TA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	5A
Shielding	Shielded
DC Resistance (DCR)	38mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	82MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD
Supplier Device Package	2-SMD
Dimension	0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRP3020TA
Other Names	SRP3020TA-1R0MTR,SRP3020TA-1R0MCT,SRP3020TA-1R0MDKR
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273953-SRP3020TA-1R0M
Ultra Librarian 3D Model	Ultra Librarian SRP3020TA-1R0M CAD Model

Alternative Products

Description

The 1273953-SRP3020TA-1R0M is a shielded inductor made of carbonyl powder core material.

Inductance: 1 µH
Tolerance: ±20%
Height - Seated (Max): 0.079 inches (2.00mm)
Packaging: Tape and Reel
Standard Package: 3,000
Series: SRP3020TA
Type: Drum Core, Wirewound
Q @ Freq: 10 @ 100kHz
Frequency - Self Resonant: 82MHz
DC Resistance (DCR) (Max): 38mOhm max
Rating: AEC-Q200
Current Rating: 4A
Mounting Type: SMD (SMT)
