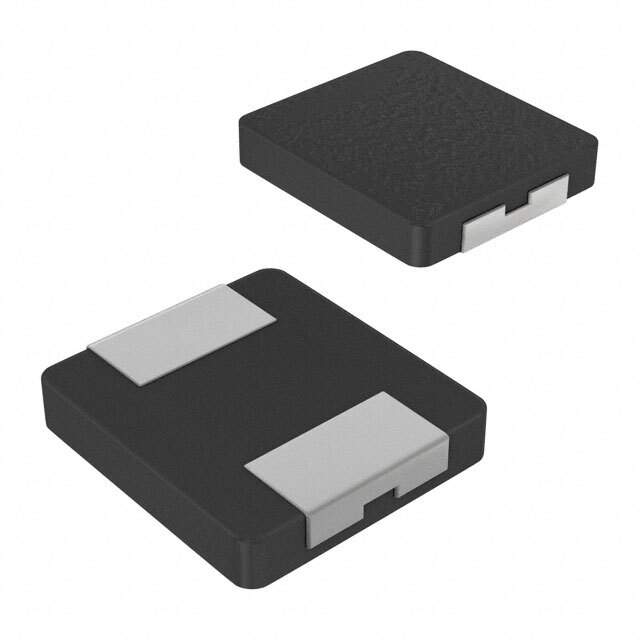

SRP4012TA-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRP4012TA-5R6M

Part No SRP4012TA-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP4012TA-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4012TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 1.7 A
Current - Saturation (Isat) 2.3A
Shielding Shielded
DC Resistance (DCR) 208mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 30MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP4012TA
Other Names SRP4012TA-5R6MCT,SRP4012TA-5R6MTR,SRP4012TA-5R6MDKR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273934-SRP4012TA-5R6M
Ultra Librarian 3D Model Ultra Librarian SRP4012TA-5R6M CAD Model

Description

The SRP4012TA series inductor is a drum core, wirewound type with a shielding feature.

  • Inductance: 5.6 µH
  • Height: 0.047" (1.20mm)
  • Package: tape & reel type
  • Standard Package: 4,000
  • Mounting: SMT
  • Temperature Range: -40°C ~ 150°C
  • Core Material: carbonyl powder
  • Inductance Frequency Test: 100 kHz
  • AEC-Q200 Rated: Yes
