Same model may have multiple batches, images only for reference.

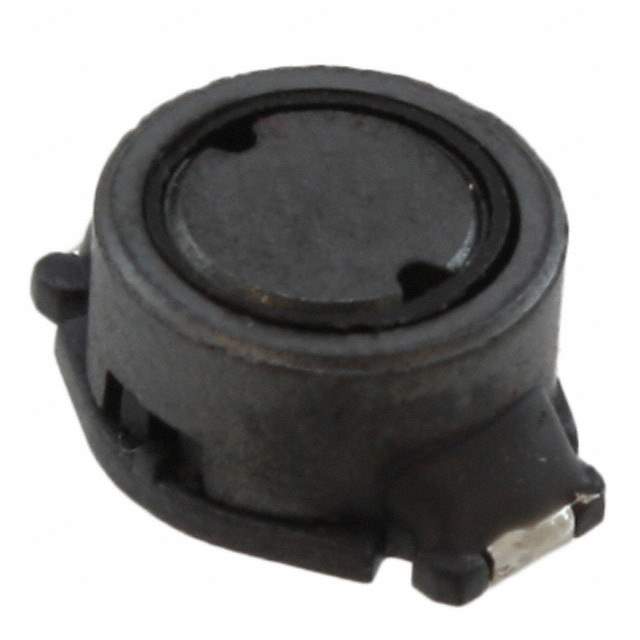

SRR0805-680K Real Image
Same model may have multiple batches, images only for reference.

SRR0805-680K

Part No SRR0805-680K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0805-680K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 440mOhm Max
Q @ Freq 28 @ 2.52MHz
Frequency - Self Resonant 9MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0805
Other Names SRR0805-680K,SRR0805-680KDKR,SRR0805-680KCT,SRR0805-680KTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273695-SRR0805-680K
Ultra Librarian 3D Model Ultra Librarian SRR0805-680K CAD Model

Description

The Bourns Inc. 1273695-SRR0805-680K fixed inductor is a drum core, wirewound type inductor.

  • Shielded: Yes
  • Standard Package: 1,000
  • Inductance: 68 µH
  • Tolerance: ±10%
  • Core Material: ferrite
  • Q @ Freq: 28 @ 2.52MHz
  • Frequency Self-Resonant: 9MHz
  • DCR: 440mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 600 mA
