Same model may have multiple batches, images only for reference.

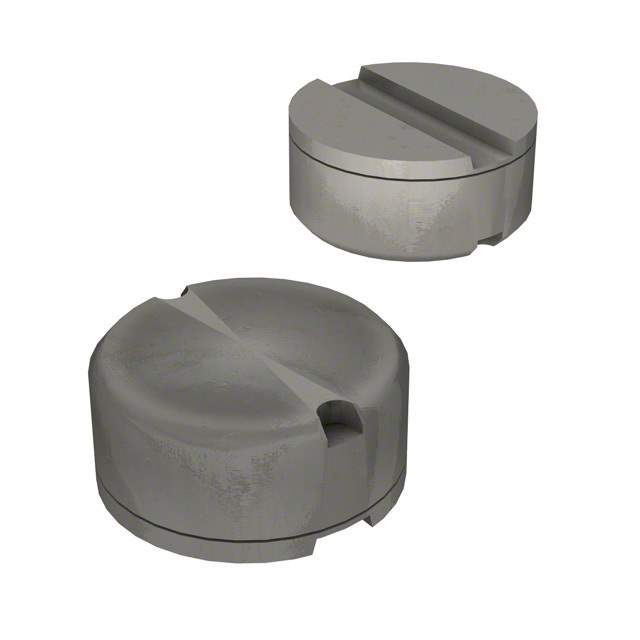

SRR0905-101K Real Image
Same model may have multiple batches, images only for reference.

SRR0905-101K

Part No SRR0905-101K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0905-101K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0905
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 720 mA
Shielding Shielded
DC Resistance (DCR) 340mOhm Max
Q @ Freq 29 @ 796kHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.390" Dia (9.90mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0905
Other Names SRR0905-101KCT,SRR0905-101KTR,SRR0905101K,-SRR0905-101K,-SRR0905-101KTR,-SRR0905-101KCT,SRR0905-101K,-SRR0905-101K
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273681-SRR0905-101K
Ultra Librarian 3D Model Ultra Librarian SRR0905-101K CAD Model

Description

The Bourns SRR0905 series of inductors is designed for use in a variety of electronic applications.

  • Construction: drum core and wirewound
  • Shielding: Yes
  • Package: tape and reel
  • Maximum Height: 0.189 inches
  • Inductance: 100 microhenries
  • Tolerance: ±10%
  • Core Material: ferrite
  • Q Rating: 29 @ 796kHz
  • Self-Resonant Frequency: 8MHz
  • Temperature Range: -40°C to 125°C
