Same model may have multiple batches, images only for reference.

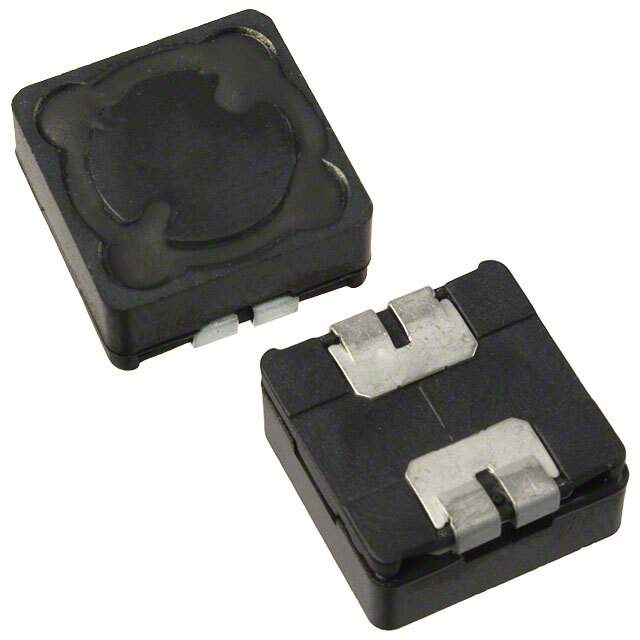

SRR1206-150ML Real Image
Same model may have multiple batches, images only for reference.

SRR1206-150ML

Part No SRR1206-150ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1206-150ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1206
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 5.1A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 19 @ 2.52MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.256" (6.50mm)
Base Product Number SRR1206
Other Names SRR1206150ML,SRR1206-150MLTR,SRR1206-150MLDKR,SRR1206-150ML,SRR1206-150MLCT
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273528-SRR1206-150ML
Ultra Librarian 3D Model Ultra Librarian SRR1206-150ML CAD Model

Description

The SRR1206-150ML is a drum core, wirewound inductor manufactured by Bourns Inc.

  • Shielded: Yes
  • Inductance: 15µH
  • Tolerance: ±20%
  • Height: 0.256 inches (6.50mm)
  • DC Resistance (DCR): 42mOhm Max
  • Q @ Freq: 19 @ 2.52MHz
  • Frequency of Self-Resonant: 16MHz
  • Package/Case: Non-standard
  • Supplier Device Package: Not specified
  • Temperature Range: -40°C to 125°C
  • Current Rating: 2.8A
  • Applications: Power supplies, DC-DC converters, and filtering
