Same model may have multiple batches, images only for reference.

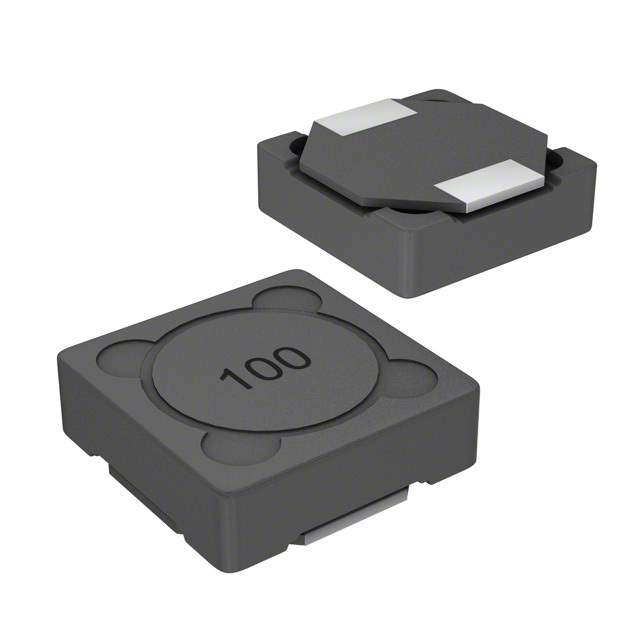

SRR1240-681K Real Image
Same model may have multiple batches, images only for reference.

SRR1240-681K

Part No SRR1240-681K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1240-681K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1240
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 480mA
Shielding Shielded
DC Resistance (DCR) 2Ohm Max
Q @ Freq 14 @ 796kHz
Frequency - Self Resonant 3.8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRR1240
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273447-SRR1240-681K
Ultra Librarian 3D Model Ultra Librarian SRR1240-681K CAD Model

Description

Bourns Inc. SRR1240 series inductors are designed for use in various applications such as power supplies, DC-DC converters, and EMI filtering.

  • Inductance: 680 µH
  • Tolerance: ±10%
  • DC Resistance: 2Ohm max
  • Current Rating: 500 mA
  • Core Material: Ferrite
  • Q @ Freq: 14 @ 796kHz
  • Frequency Self-Resonant: 3.8MHz
  • Package/Case: Non-standard
  • Operating Temperature Range: -40°C to 125°C
  • Package: Tape & reel
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Type: Shielded
