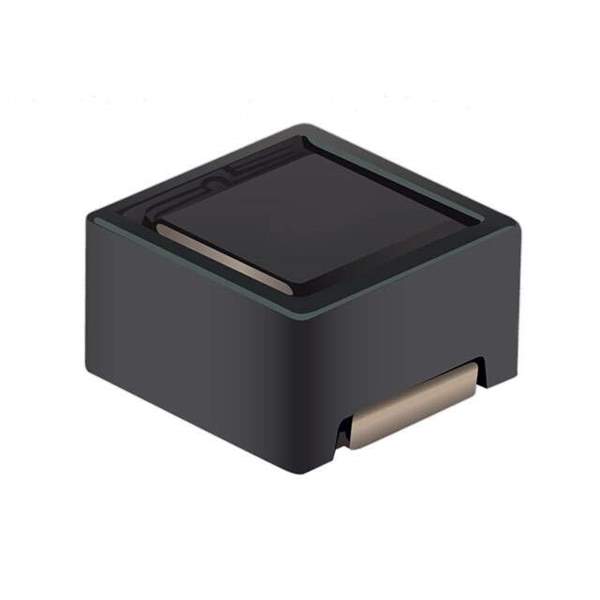

SRR4828A-1R2Y Real Image
Same model may have multiple batches, images only for reference.

SRR4828A-1R2Y

Part No SRR4828A-1R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR4828A-1R2Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR4828A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.2 µH
Tolerance ±30%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Frequency - Self Resonant 155MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR4828A
Other Names SRR4828A-1R2YCT,SRR4828A-1R2YDKR,SRR4828A-1R2YTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273280-SRR4828A-1R2Y
Ultra Librarian 3D Model Ultra Librarian SRR4828A-1R2Y CAD Model

Description

The Bourns Inc. SRR4828A-1R2YCT is a fixed inductor with a drum core, wirewound type and a shielding feature.

  • Inductance: 1.2 µH
  • Current Rating: 5A
  • Tolerance: ±30%
  • DC Resistance (DCR): 24mOhm Max
  • Frequency Self-Resonant: 155MHz
  • AEC-Q200: Yes
  • Mounting: SMD (SMT)
  • Package/Case: Non-standard
  • Temperature Range: -40°C to 150°C
  • Dimensions: 0.189" L x 0.189" W (4.80mm x 4.80mm)
  • Manufacturer: Bourns Inc.
