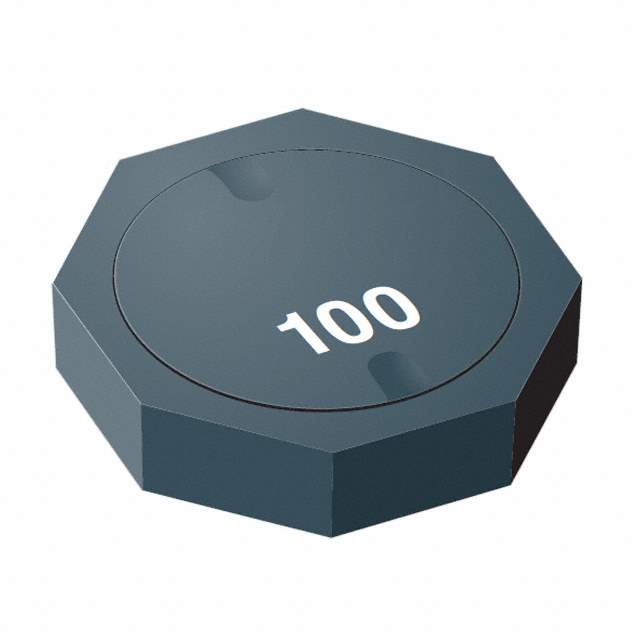

SRU1028A-101Y Real Image
Same model may have multiple batches, images only for reference.

SRU1028A-101Y

Part No SRU1028A-101Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1028A-101Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±30%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 470mOhm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.122" (3.10mm)
Base Product Number SRU1028A
Other Names SRU1028A-101Y,SRU1028A-101YTR,SRU1028A-101YDKR,SRU1028A-101YCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273164-SRU1028A-101Y
Ultra Librarian 3D Model Ultra Librarian SRU1028A-101Y CAD Model

Description

The SRU1028A series from Bourns Inc. is a drum core, wirewound inductor.

  • Shielding: Yes
  • Core Material: Ferrite
  • Inductance: 100 µH
  • Tolerance: ±30%
  • Height: 0.122" (3.10mm)
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • DC Resistance (DCR): 470mOhm Max
  • Current Rating: 850 mA
  • Frequency Self-Resonant: 7MHz
  • Q @ Freq: 20 @ 796kHz
  • AEC-Q200 Rated: Yes
  • Temperature Range: -40°C ~ 125°C
  • Package: Non-standard
  • Packaging: Tape & reel
  • Standard Package: 1,000
