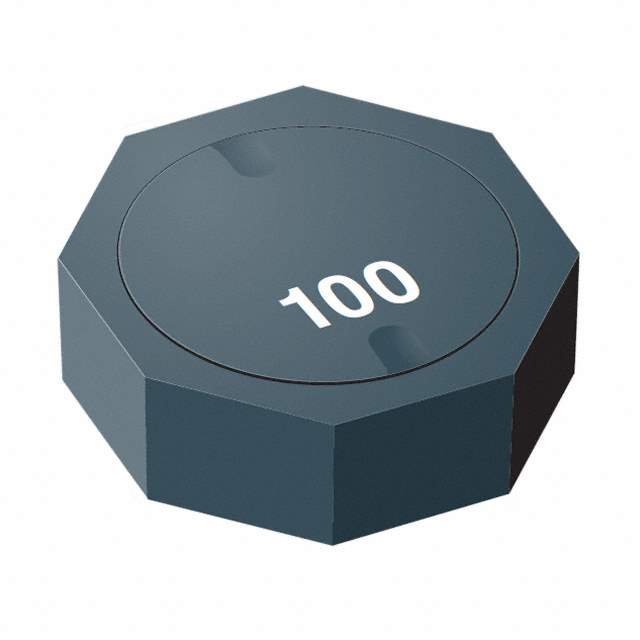

SRU1038A-221Y Real Image
Same model may have multiple batches, images only for reference.

SRU1038A-221Y

Part No SRU1038A-221Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 650MA 740MOHM SM / 220 µH Shielded Drum Core, Wirewound Inductor 650 mA 740mOhm Max Nonstandard
Datasheet
SRU1038A-221Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±30%
Current Rating (Amps) 650 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 740mOhm Max
Q @ Freq 22 @ 796kHz
Frequency - Self Resonant 4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.161" (4.10mm)
Base Product Number SRU1038A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRU1038A-221Y-ND,SRU1038A-221YCT,SRU1038A-221YTR,SRU1038A-221YDKR
Standard Package 800
Win Source Part Number 1327989-SRU1038A-221Y
Ultra Librarian 3D Model Ultra Librarian SRU1038A-221Y CAD Model

Description

The SRU1038A-221Y is a fixed inductor manufactured by Bourns Inc.

  • Core Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Application: AEC-Q200 Rated
  • Inductance: 220 μH
  • Current Rating: 650 mA
  • Tolerance: ±30%
  • Mounting: Surface Mount
  • Packaging: Reel
  • RoHS Status: ROHS3 Compliant
