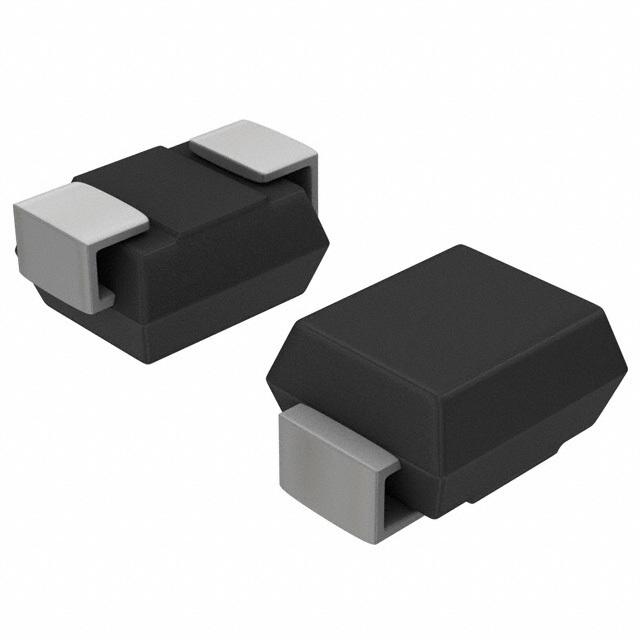

CD214B-B330LF Bourns Inc.
Same model may have multiple batches, images only for reference.

CD214B-B330LF

Part No CD214B-B330LF
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 3A DO214AA
Datasheet
CD214B-B330LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 30V
Capacitance @ Vr, F 250pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AA (SMB)
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 1028131-CD214B-B330LF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CD214B-B330LF CAD Model

Description

The Bourns Inc. CD214B-B330LF is a surface mount Schottky diode with a voltage - DC Reverse (Vr) (Max) of 30V and an average rectified current (Io) of 3A.

  • Voltage - DC Reverse (Vr) (Max): 30V
  • Average Rectified Current (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 500mV @ 3A
  • Current - Reverse Leakage @ Vr: 500μA @ 30V
  • Capacitance: 250pF @ 4V, 1MHz
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: DO-214AA (SMB)
  • Category: Discrete Semiconductor Products
  • Package: 3k pcs
