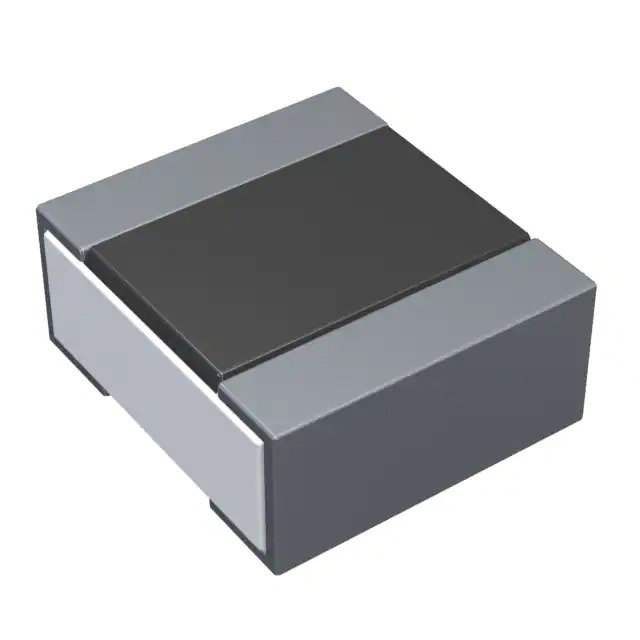

Same model may have multiple batches, images only for reference.
CR0402-JW-512GLF Bourns Inc.
Same model may have multiple batches, images only for reference.

CR0402-JW-512GLF

Part No CR0402-JW-512GLF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 5.1K OHM 5% 1/16W 0402
Datasheet
CR0402-JW-512GLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CR0402
Package Tape & Reel
Product Status Active
Resistance 5.1 kOhms
Tolerance ±5%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Features -
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Failure Rate -
Base Product Number CR0402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1373614-CR0402-JW-512GLF
Ultra Librarian 3D Model Ultra Librarian CR0402-JW-512GLF CAD Model

Description

The Bourns Inc. CR0402-JW-512GLF is a chip resistor designed for surface mount applications.

  • Resistance: 5.1 kOhms
  • Power Rating: 0.063W
  • Series: CR0402
  • Package Size: 0402 (1005 Metric)
  • Dimensions: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Seated Height: 0.016" (0.40mm)
  • Temperature Coefficient: ±200ppm/°C
  • Temperature Range: -55°C to 155°C
  • Tolerance: ±5%
  • Material: Thick Film
