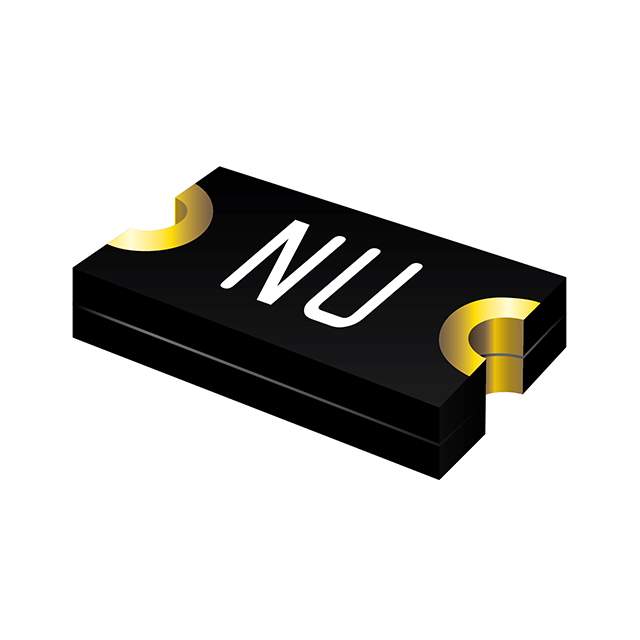

MF-NSML350-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSML350-2

Part No MF-NSML350-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 3.5A(hold) 7A(trip) 6V 50A 0.8W 5s 0.002Ohm SMD Solder Pad 1206 3.5 X 1.8 X 0.6mm / PTC 3.5A 6V SMD 1206 LOW-OHMIC
Datasheet
MF-NSML350-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Series Multifuse, MF-NSML
Packaging Reel package
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 3.5A
Current - Trip (It) 7A
Time to Trip 5s
Resistance - Initial (Ri) (Minimum) 2 mOhm
Resistance - Post Trip (R1) (Maximum) 18 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Maximum) 0.024" (0.60mm)
Thickness (Maximum) 0.024" (0.60mm)
Approvals cURus, TUV
Win Source Part Number 788409-MF-NSML350-2
Popularity Medium
Supply and Demand Status Limited
Family Name MF-NSML
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MF-NSML350-2 CAD Model

Description

The Bourns Inc. MF-NSML350-2 is a polymeric multifuse from Bourns Inc. that comes in a 1206 (3216 metric), concave package.

  • Package: 1206 (3216 metric), concave
  • Operating Temperature: -40°C to 85°C
  • Mounting: SMD
  • Maximum Voltage: 6V
  • Maximum Current: 50A
  • Trip Current: 7A
  • Time to Trip: 5s
  • Family: MF-NSML
  • Category: Circuit Protection
  • Dimensions: 0.128" L x 0.063" W (3.25mm x 1.60mm)
  • Current Hold (Ih) (Maximum): 3.5A
  • Seated Height (Maximum): 0.024" (0.60mm)
  • Thickness (Maximum): 0.024" (0.60mm)
  • Initial Resistance (Ri) (Minimum): 2 mOhm
  • Post-Trip Resistance (R1) (Maximum): 18 mOhm
  • ECCN: EAR99
  • Estimated EOL Date: 2027
  • Approvals: cURus, TUV
  • HTSUS Code: 8533.21.0030
