Same model may have multiple batches, images only for reference.

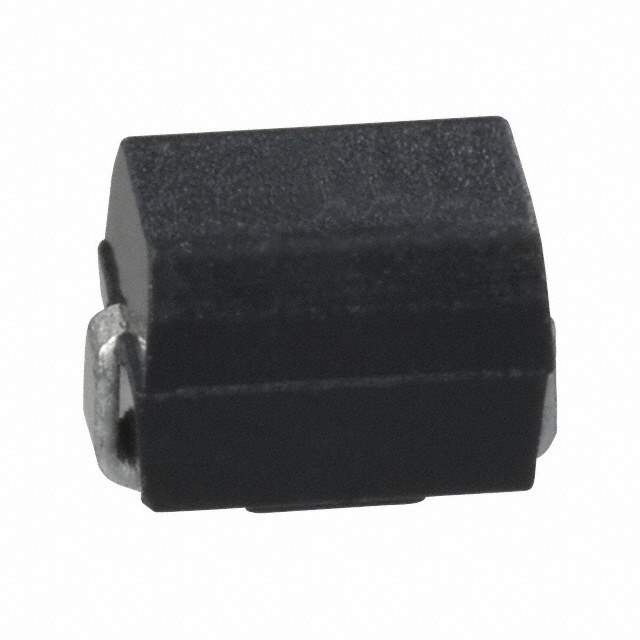

PM1812-2R7J-RC Real Image
Same model may have multiple batches, images only for reference.

PM1812-2R7J-RC

Part No PM1812-2R7J-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2.7UH 370MA 750MOHM SM / 2.7 µH Unshielded Inductor 370 mA 750mOhm Max 1812 (4532 Metric)
Datasheet
PM1812-2R7J-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series PM1812
Package Tape & Reel (TR)
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±5%
Current Rating (Amps) 370 mA
Shielding Unshielded
DC Resistance (DCR) 750mOhm Max
Q @ Freq 50 @ 7.96MHz
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.134" (3.40mm)
Base Product Number PM1812
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 500
Win Source Part Number 1085507-PM1812-2R7J-RC
Ultra Librarian 3D Model Ultra Librarian PM1812-2R7J-RC CAD Model

Description

The PM1812 series inductor is a high-quality fixed inductor designed for use in a wide range of electronic devices.

  • Inductance: 2.7 µH
  • Tolerance: ±5%
  • Q Factor: 50 @ 7.96MHz
  • Shielding: Unshielded
  • Installation: Surface Mount
  • DC Resistance: 750mOhm
  • Current Rating: 370 mA
  • Temperature Range: -40°C to 100°C
  • Package Quantity: 500 units
  • Seated Height: 0.134" (3.40mm)
