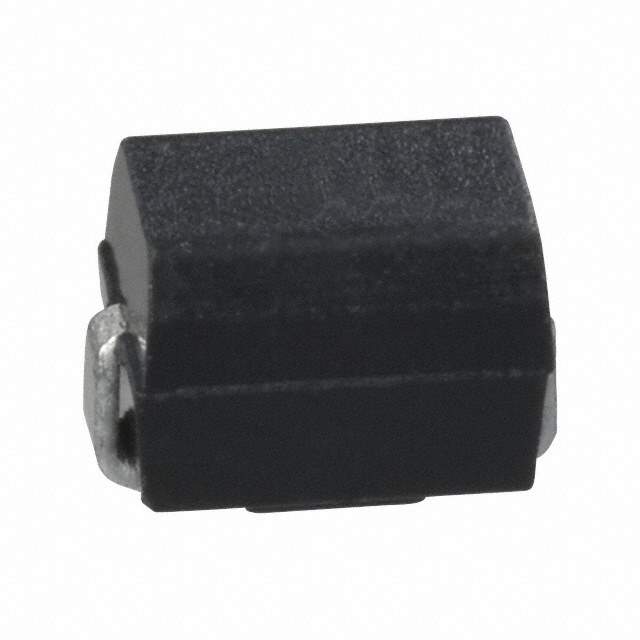

PM1812-821J-RC

Name: PM1812-821J-RC
Brand: Bourns Inc.
SKU: 1035021
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PM1812-821J-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 820UH 30MA 35 OHM SMD / 820 µH Unshielded Inductor 30 mA 35Ohm Max 1812 (4532 Metric)
Datasheet	PM1812-821J-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	PM1812
Package	Tape & Reel (TR)
Material - Core	Ferrite
Inductance	820 µH
Tolerance	±5%
Current Rating (Amps)	30 mA
Shielding	Unshielded
DC Resistance (DCR)	35Ohm Max
Q @ Freq	30 @ 796kHz
Frequency - Self Resonant	2.5MHz
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	796 kHz
Mounting	SMD (SMT)
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.134" (3.40mm)
Base Product Number	PM1812
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	500
Win Source Part Number	1035021-PM1812-821J-RC
Ultra Librarian 3D Model	Ultra Librarian PM1812-821J-RC CAD Model

Alternative Products

Description

The Bourns Inc. PM1812 is a fixed inductor with an unshielded feature.

Feature: Unshielded
Inductance: 820 µH
Tolerance: ±5%
Core Material: Ferrite
Q @ Freq: 30 @ 796kHz
Frequency - Self Resonant: 2.5MHz
Mounting: SMD (SMT)
Package/Case: 1812 (4532 Metric)
DC Resistance (DCR): 35Ohm Max
Supplier Device Package: 1812
Operating Temperature Range: -40°C to 100°C
Ideal For: Power Supplies, DC-DC converters, and Filtering
