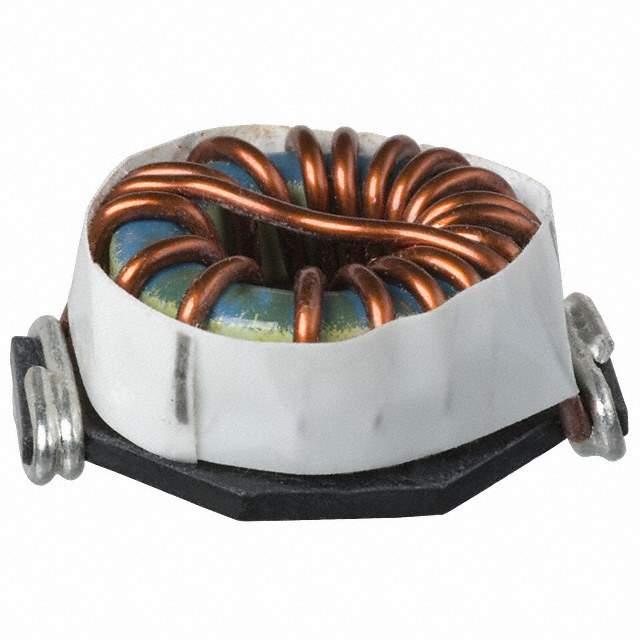

Same model may have multiple batches, images only for reference.

PM2110-680K-RC

Name: PM2110-680K-RC
Brand: Bourns Inc.
SKU: 656092
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PM2110-680K-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	High Current SMD Power Inductors
Datasheet	PM2110-680K-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Series	PM2110
Packaging	Bulk
Type	Toroidal
Material - Core	Iron
Inductance	68μH
Tolerance	±10%
Current Rating	5.9A
Shielding	Unshielded
DC Resistance (DCR)	27 mOhm Max
Operating Temperature Range	-55°C ~ 105°C
Test Frequency	1kHz
Mounting	SMD
Package	Nonstandard
Size	1.200" L x 1.000" W (30.50mm x 25.40mm)
Height - Seated (Maximum)	0.620" (15.75mm)
Win Source Part Number	1238780-PM2110-680K-RC
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PM2110
Introduction Date	June 23, 2006
ECCN	EAR99
Country of Origin	United States of America
Halogen Free	Compliant
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian PM2110-680K-RC CAD Model

Alternative Products

Description

The Bourns Inc. PM2110-680K-RC is a toroidal SMD inductor that is designed to operate in a temperature range of -55°C to 105°C.

Temperature Range: -55°C to 105°C
Package: Nonstandard
Inductance: 68μH
Tolerance: ±10%
Current Rating: 5.9A
Material: Iron
Series: PM2110
Category: Inductors, Coils, Chokes
DC Resistance (DCR): 27 mOhm Max
Height Seated (Maximum): 0.620" (15.75mm)
Halogen-Free: Compliant
Estimated EOL Date: 2024
Supply and demand status: Limited
