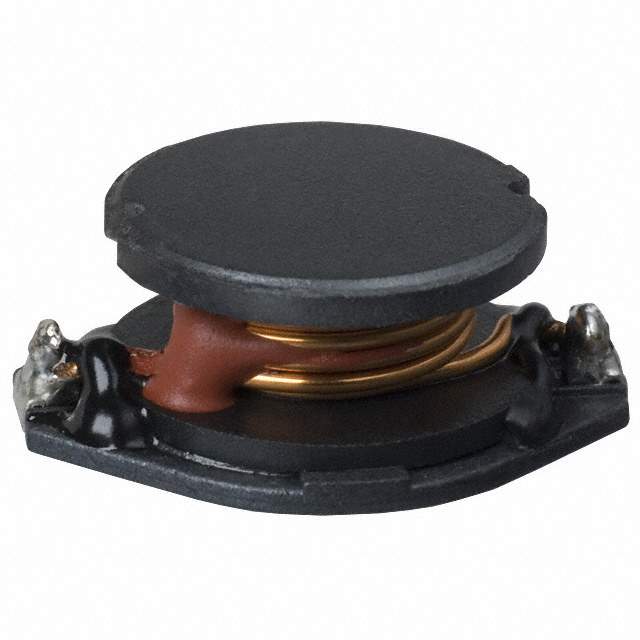

PM5022-680M-RC Real Image
Same model may have multiple batches, images only for reference.

PM5022-680M-RC

Part No PM5022-680M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description PM5022 Series SMD Power Inductor
Datasheet
PM5022-680M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series PM5022
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±20%
Current Rating 2.1A
Current - Saturation 3.8A
Shielding Unshielded
DC Resistance (DCR) 130 mOhm
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 2.52MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Maximum) 0.272" (6.90mm)
Win Source Part Number 1238803-PM5022-680M-RC
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name PM5022
Introduction Date March 01, 2000
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian PM5022-680M-RC CAD Model

Description

The PM5022-680M-RC is a wirewound inductor from Bourns Inc.

  • Value: 68 microhenries
  • Current Rating: 2.1A
  • Tolerance: ±20%
  • DC Resistance: 130 milliohms
  • Temperature Range: -40°C to 125°C
  • Frequency Self-Resonant: 2.52 MHz
  • Package: Nonstandard
  • Supply and Demand Status: Limited
  • Popularity: Medium
