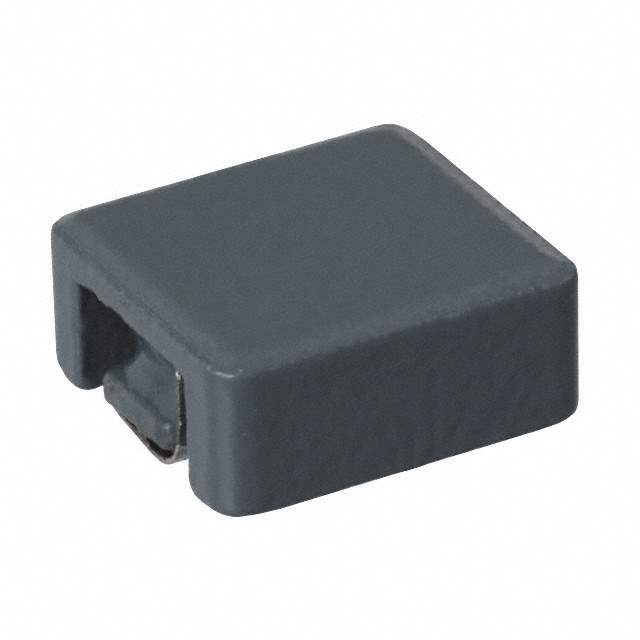

Same model may have multiple batches, images only for reference.

PM7232S-1R5M-RC

Name: PM7232S-1R5M-RC
Brand: Bourns Inc.
SKU: 1085651
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PM7232S-1R5M-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 9A 15 MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 9 A 15mOhm Max Nonstandard
Datasheet	PM7232S-1R5M-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	PM7232S
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	1.5 µH
Tolerance	±20%
Current Rating (Amps)	9 A
Current - Saturation (Isat)	14A
Shielding	Shielded
DC Resistance (DCR)	15mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.126" (3.20mm)
Base Product Number	PM7232S
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	M8498TR,PM7232S1R5MRC,M8498DKR,M8498CT
Standard Package	1,000
Win Source Part Number	1085651-PM7232S-1R5M-RC
Ultra Librarian 3D Model	Ultra Librarian PM7232S-1R5M-RC CAD Model

Alternative Products

Description

The PM7232S series inductor is a drum core, wirewound type with a shielding feature.

Inductor Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 1.5 μH
Tolerance: ±20%
Package: Tape and Reel
Maximum Seated Height: 0.126 inches / 3.20mm
Core Material: Iron
DC Resistance (DCR): 15mOhm max
Current Rating: 9A
Inductance Frequency-Test: 100 kHz
Temperature Range: -55°C to 150°C
MSL Level: 1 (Unlimited)
Manufacturer: Bourns Inc.
