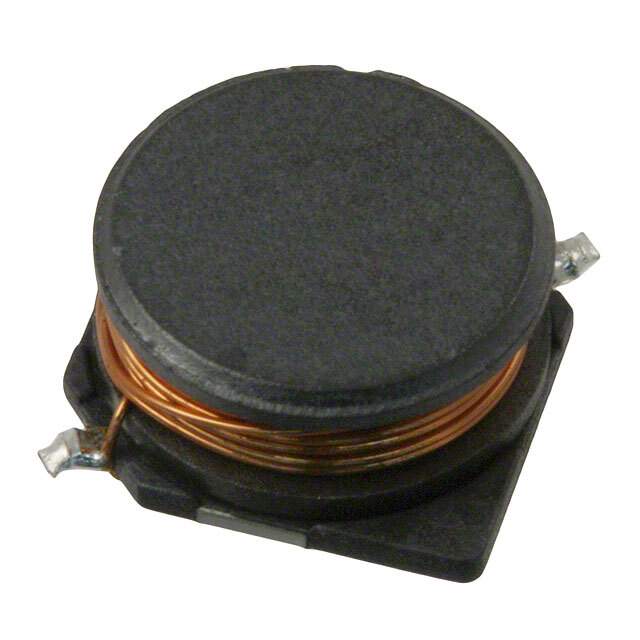

SDR1045-101K Real Image
Same model may have multiple batches, images only for reference.

SDR1045-101K

Part No SDR1045-101K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 1.1A 540MOHM SMD / 100 µH Unshielded Drum Core, Wirewound Inductor 1.1 A 540mOhm Max Nonstandard
Datasheet
SDR1045-101K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1045
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.3A
Shielding Unshielded
DC Resistance (DCR) 540mOhm Max
Q @ Freq 14 @ 796kHz
Frequency - Self Resonant 9.7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR1045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -SDR1045-101KTR,-SDR1045-101KCT,SDR1045-101KCT,SDR1045-101KTR,SDR1045-101K-ND
Standard Package 700
Win Source Part Number 1225022-SDR1045-101K
Ultra Librarian 3D Model Ultra Librarian SDR1045-101K CAD Model

Description

The electronic component with Win Source Part Number 1225022-SDR1045-101K is a fixed inductor belonging to the category of Inductors, Coils, Chokes and is manufactured by Bourns Inc.

  • Series: SDR1045
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Mounting: SMD (SMT)
  • Type: unshielded drum core, wirewound
  • Inductance: 100 μH
  • Height Seated: 0.189" (4.80mm)
  • Standard Package: 700
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 14 @ 796kHz
  • Self-Resonant Frequency: 9.7MHz
  • DC Resistance (DCR): 540mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Dimensions: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • REACH: unaffected
  • ECCN: EAR99
  • Current Rating: 1.1A
  • Inductance Frequency Test: 100 kHz
