Same model may have multiple batches, images only for reference.

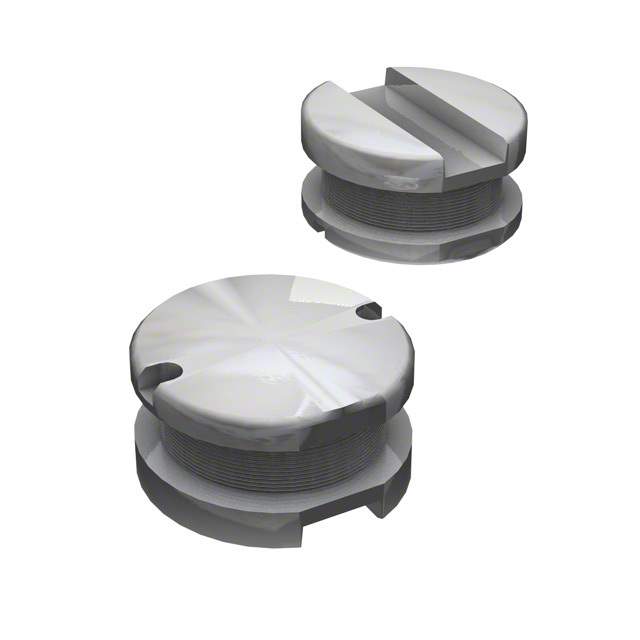

SDR1307-100ML Real Image
Same model may have multiple batches, images only for reference.

SDR1307-100ML

Part No SDR1307-100ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 5.6A 21 MOHM SMD
Datasheet
SDR1307-100ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 5.6A
Current - Saturation 9.2A
DC Resistance (DCR) 21 mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 22MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.287" (7.30mm)
Win Source Part Number 1095094-SDR1307-100ML
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDR1307-100ML CAD Model

Description

The SDR1307-100ML is an active component with medium popularity and balanced supply and demand status from Bourns Inc..

  • Component Type: Wirewound
  • Current Rating: 5.6A
  • Inductance: 10μH
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Application: Inductors, Coils, and Chokes
  • DC Resistance (DCR): 21 mOhm Max
  • Current Saturation: 9.2A
  • Q @ Freq: 22 @ 2.52MHz
  • Self-Resonant Frequency: 22MHz
  • Temperature Range: -40°C to 125°C
