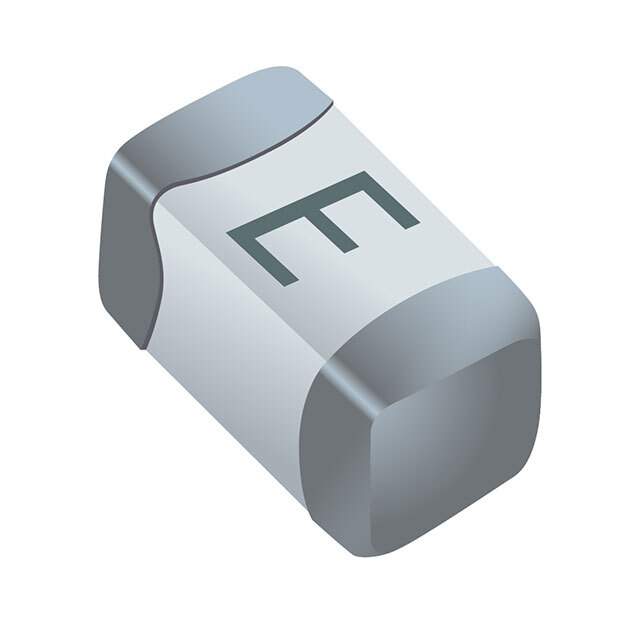

SF-0603HI300M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603HI300M-2

Part No SF-0603HI300M-2
Manufacturer Bourns Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 3A 32VDC 0603 / 3 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
SF-0603HI300M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603HIxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3 A
Voltage Rating - DC 32 V
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.72
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.031" H (1.60mm x 0.80mm x 0.80mm)
DC Cold Resistance 0.03 Ohms
Base Product Number SF-0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names SF-0603HI300M-2CT,SF-0603HI300M-2DKR,SF-0603HI300M-2TR
Standard Package 4,000
Win Source Part Number 1184045-SF-0603HI300M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603HI300M-2 CAD Model

Description

The SF-0603HI300M-2 is a fuse product from Bourns Inc. It is a SinglFuse™ SF-0603HIxxxM series fuse that has a current rating of 3A and a voltage rating of 32V DC. This fuse is designed for board mount (cartridge style excluded) and has a breaking capacity of 50A at rated voltage. The melting I2t of this fuse is 0.72 and the DC cold resistance is 0.03 Ohms. The package / case of this fuse is 0603 (1608 Metric) and it can be mounted using SMD (SMT). The temperature range - operating of this fuse is -55°C to 150°C.
