Same model may have multiple batches, images only for reference.

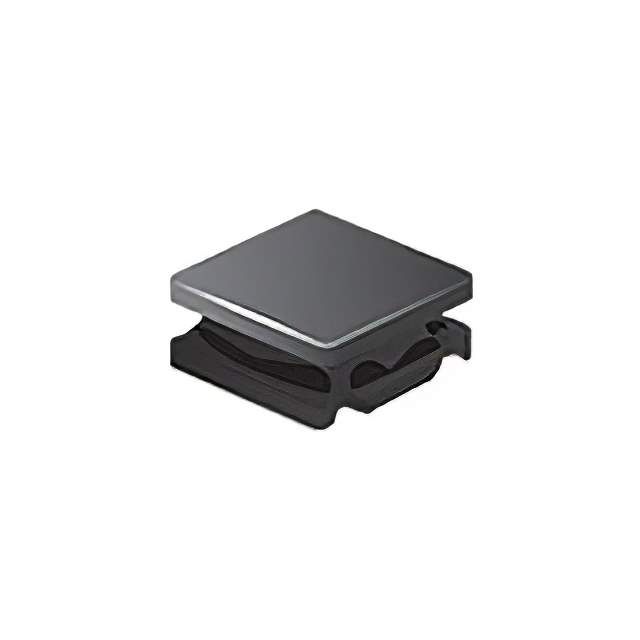

SRN4018-100M Real Image
Same model may have multiple batches, images only for reference.

SRN4018-100M

Part No SRN4018-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 1.3A 180 MOHM SMD / Semi-shielded Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating (Amps) 1.3A
Current - Saturation 1.4A
Shielding Semi-Shielded
DC Resistance (DCR) 180mOhm Max
Q at Freq 11 at 2.52MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Part Number Series SRN4018
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804480-SRN4018-100M
Ultra Librarian 3D Model Ultra Librarian SRN4018-100M CAD Model

Description

The Bourns Inc. 804480-SRN4018-100M is a semi-shielded wirewound inductor.

  • Inductance: 10μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 11 @ 2.52MHz
  • Frequency Self-Resonant: 25MHz
  • DC Resistance (DCR): 180mOhm Max
  • Current Rating: 1.3A
  • Height: 0.071" (1.80mm)
  • Mounting: SMD (SMT)
  • Package/Case: Non-standard
  • Temperature Range: -40°C ~ 125°C
  • Packaging: Reel
  • Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Base Product Number: SRN4018
