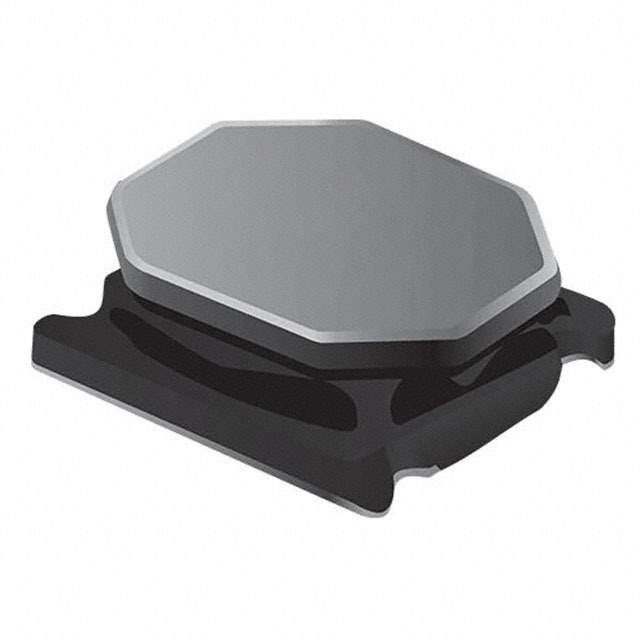

The SRN5020-150M is a semi-shielded power inductor manufactured by Bourns Inc. Power inductors are crucial components in DC-DC converters and other power supply circuits, storing energy and smoothing current flow.

Applications

• DC-DC converters
• Power supplies
• Voltage regulators
• Filtering circuits
• Portable electronic devices

Features

• Semi-shielded construction
• High current capacity
• Low DC resistance (DCR)
• Compact size
• RoHS compliant

Benefits

• Efficient power conversion
• Reduced power loss
• Small footprint
• Improved circuit performance

Technical Specifications (Typical)

• Inductance: 15 µH (as indicated by '150' representing 15 x 10^0 µH)
• Tolerance: Typically ±20%
• Saturation Current: Dependent on temperature and specific testing conditions; refer to datasheet.
• DC Resistance (DCR): Low DCR minimizes power loss; refer to datasheet for specific value.
• Self-Resonant Frequency (SRF): Refer to datasheet for the SRF value.
• Package Size: 5.0 mm x 5.0 mm x 2.0 mm (SRN5020 refers to the dimensions)

The Bourns SRN5020-150M power inductor is designed for demanding power applications. Its semi-shielded construction helps reduce electromagnetic interference (EMI). The low DCR minimizes power losses, improving overall circuit efficiency. Always consult the Bourns datasheet for detailed specifications, including saturation current, DCR, and SRF, to ensure proper component selection for your application. Consider the operating frequency and current requirements when selecting an inductor.
